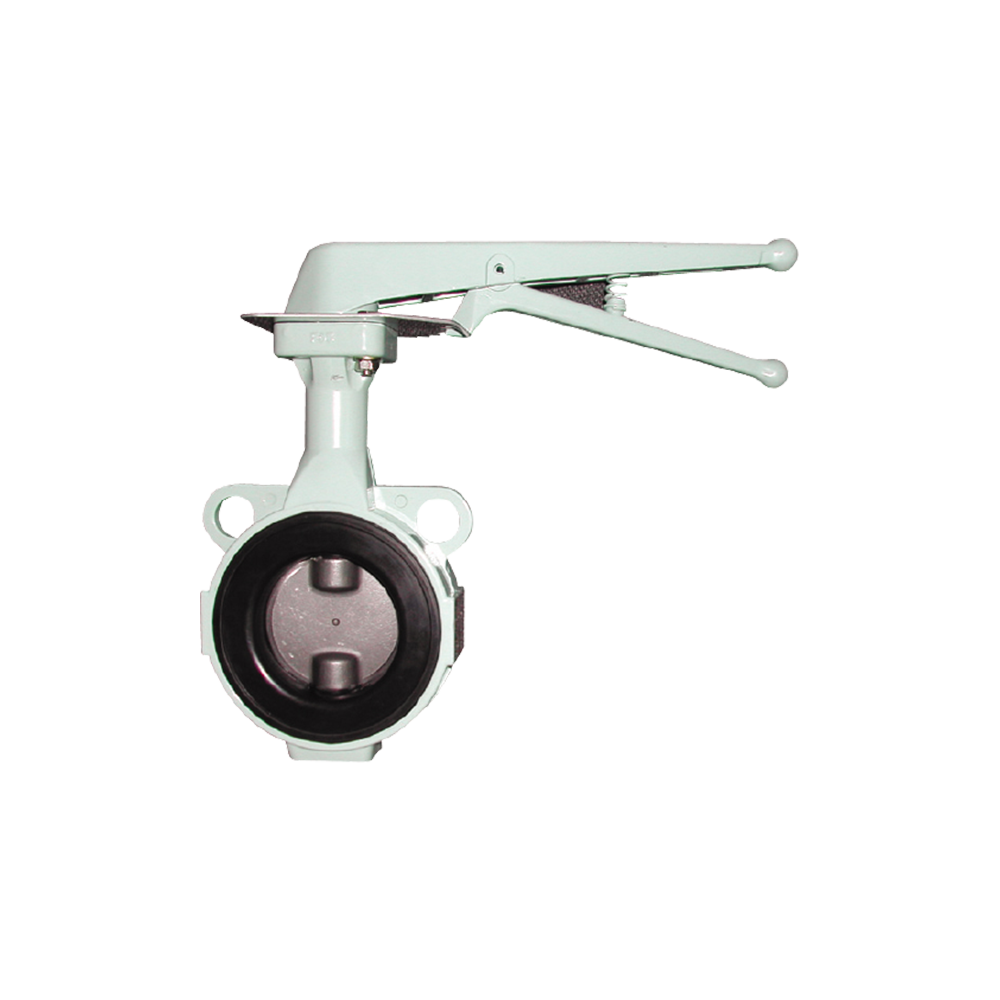

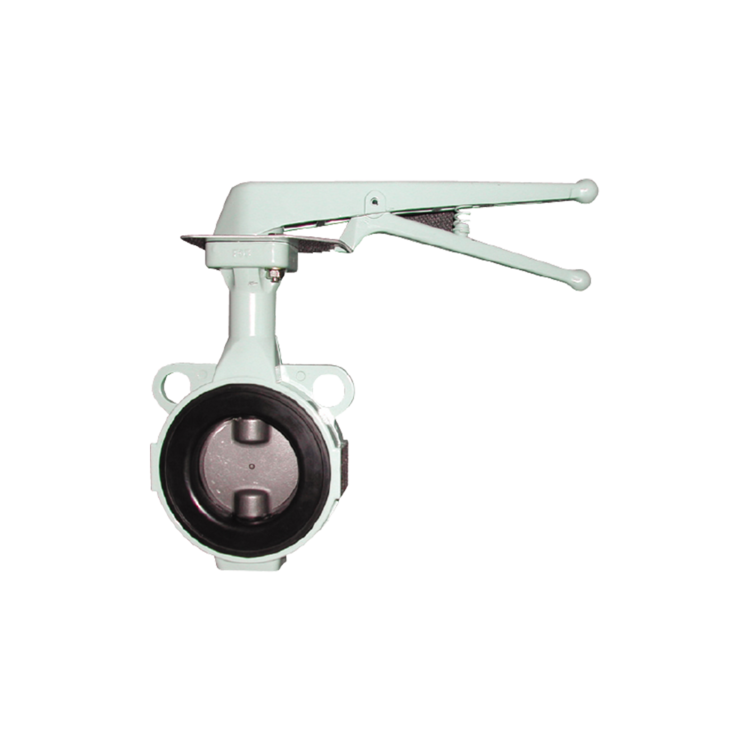

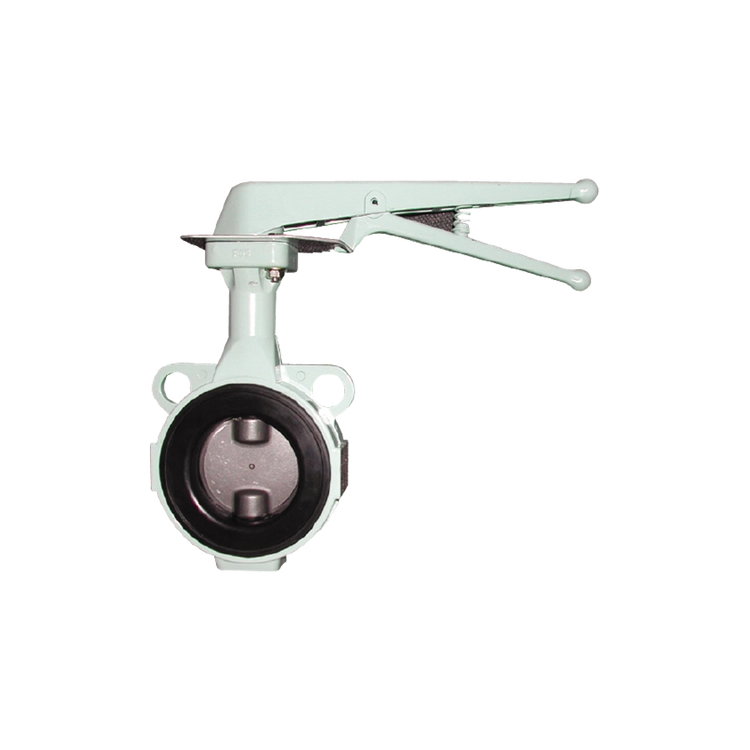

Butterfly Valve, Wafer, Alumimum Alloy Body, Wafer, JIS 10K, ANSI 150, PN 10
SIZE : 1-1/4″~12″
TYPE OF BODY : WAFER
END CONNECTION :
MAX. PRESSURE : 10kg/cm² (0.98mpa)
- BODY SHELL TEST : 15kg/cm² (1.47mpa)
- SEAT LEAK TEST : 11kg/cm² (1.08mpa)
MAX. TEMPERATURE :
- EPDM : -20℃ to +120℃
- NBR : -10℃ to +80℃
FLANGE : JIS 10K, ANSI 150, PN10
MATERIAL
- BODY : ALUMINIUM ALLOY DIECAST (ADC-12)
- DISC : STAINLESS STEEL (304, 316)
- STEM : STAINLESS STEEL (304, 316)
- SEAT RING : EPDM, NBR
OPERATOR
- LOCK LEVER (1-1/4"~6")
- WORM GEAR (1-1/4"~12")
OPTION
- LUG BODY
- FLANGE BODY
