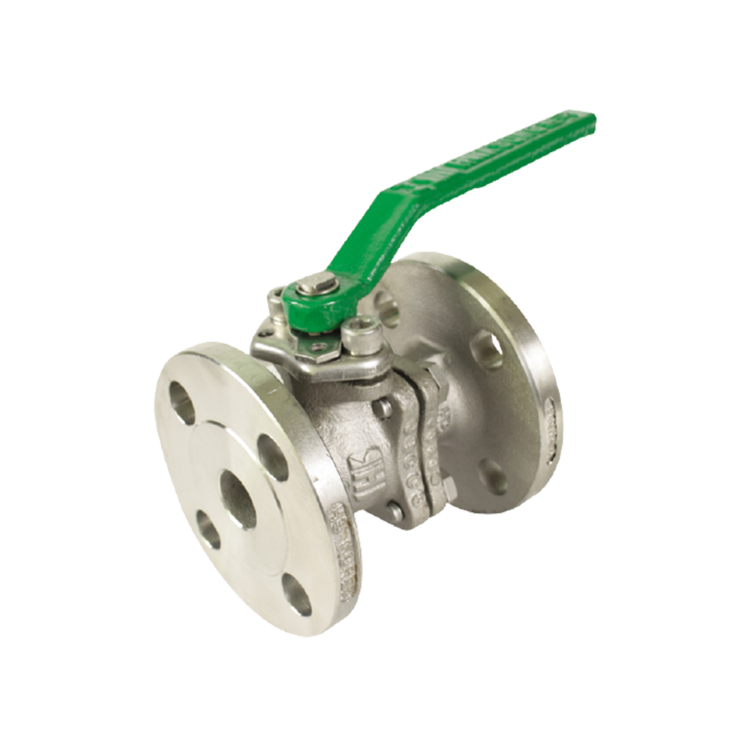

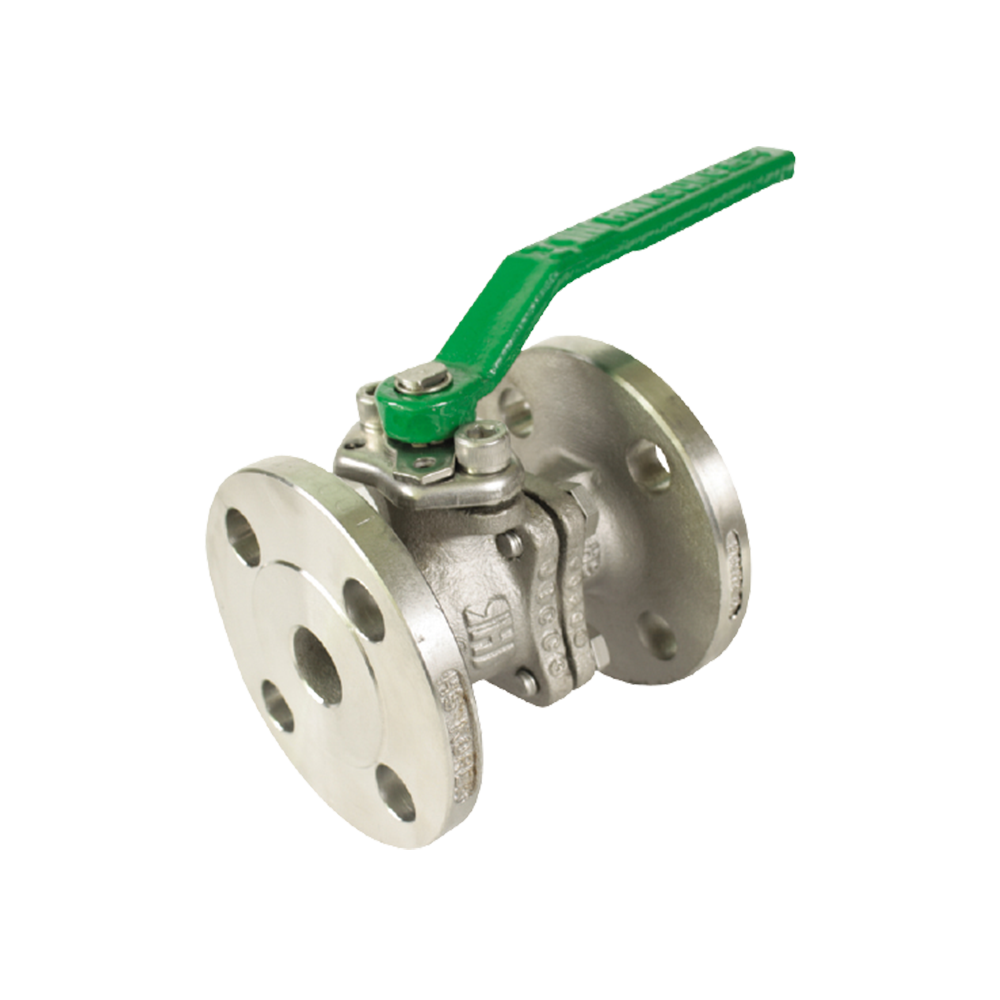

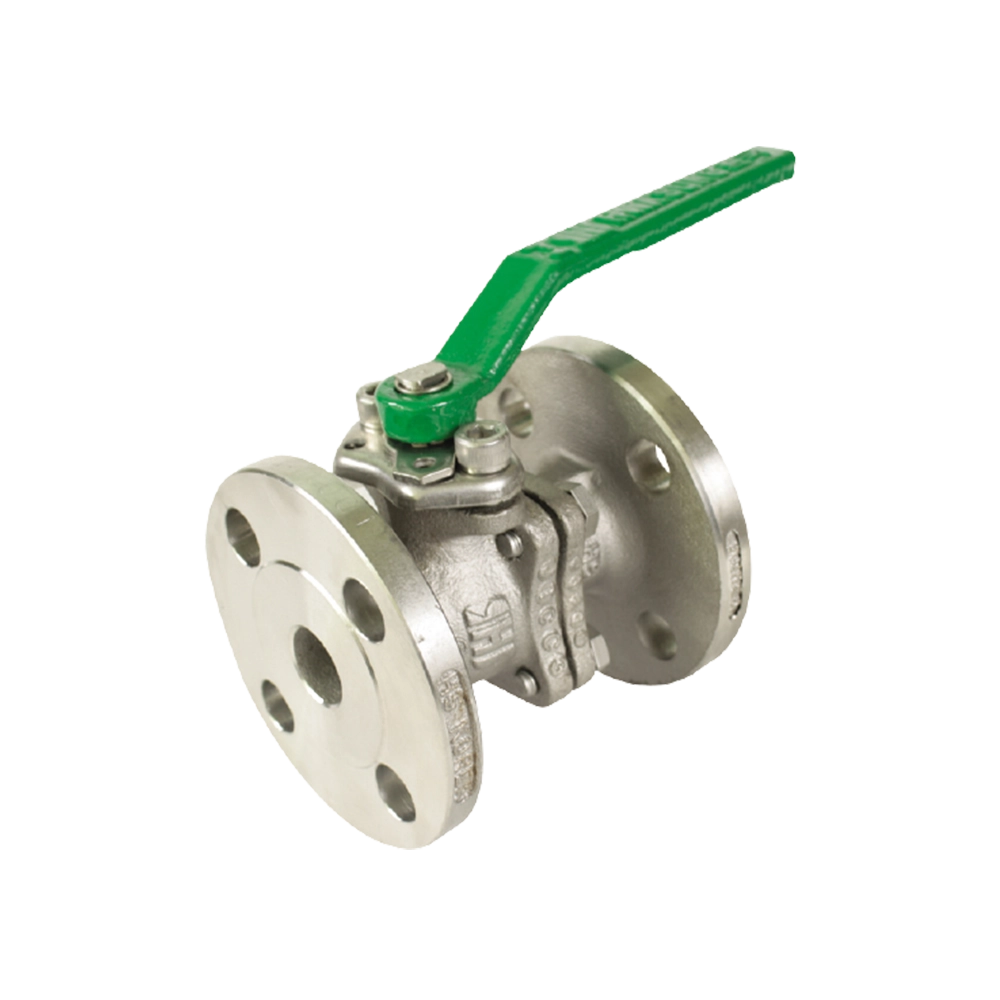

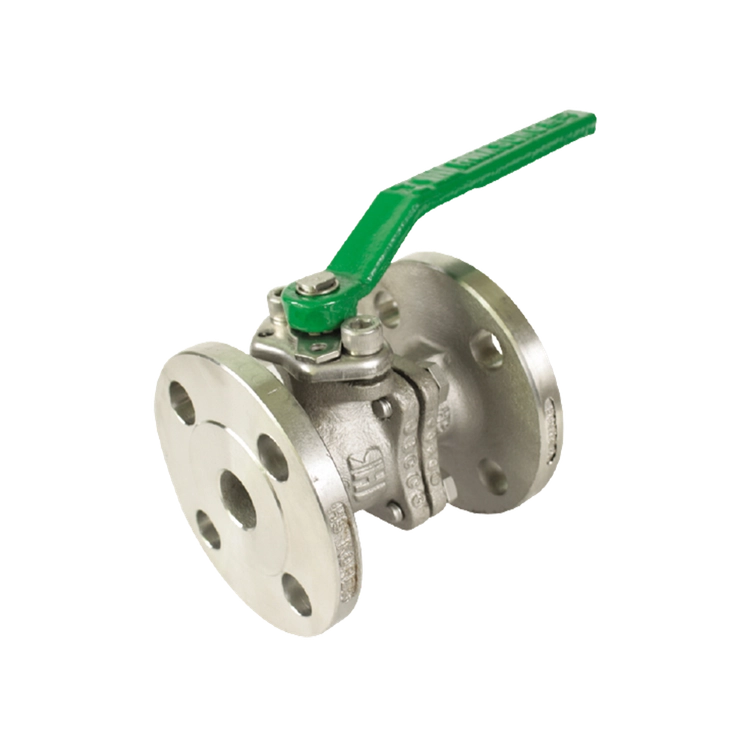

2-Piece Flanged Ball Valve, ANSI 150/300, Full Bore
SIZE : 1/2″~16″
END CONNECTION :
MAX. PRESSURE :
MAX. TEMPERATURE : 160℃
PORT : FULL BORE
FLANGE : ANSI 150 / 300LBS
MATERIAL : ASTM A351-CF8M / ASTM A351-CF8
- BLOW OUT PROOF STEM
- LOCKING DEVICE
- 4 BOLTS DESIGN ACTUATOR MOUNTING PAD
- SAND CASTING BODY & END CAP
APPLICABLE STANDARDS
- SHELL WALL THICKNESS : ANSI B16.34
- FACE TO FACE DIMENSIONS : API 6D / ANSI 16.10
- END FLANGE DIMENSIONS : ANSI B16.5
- PRESSURE-TEMPERATURE RATING (VALVE SHELL) : ANSI B16.34
- GEARBOX OPERATED TYPE : 8″AND LARGER
OPTION
- METAL SEAT
