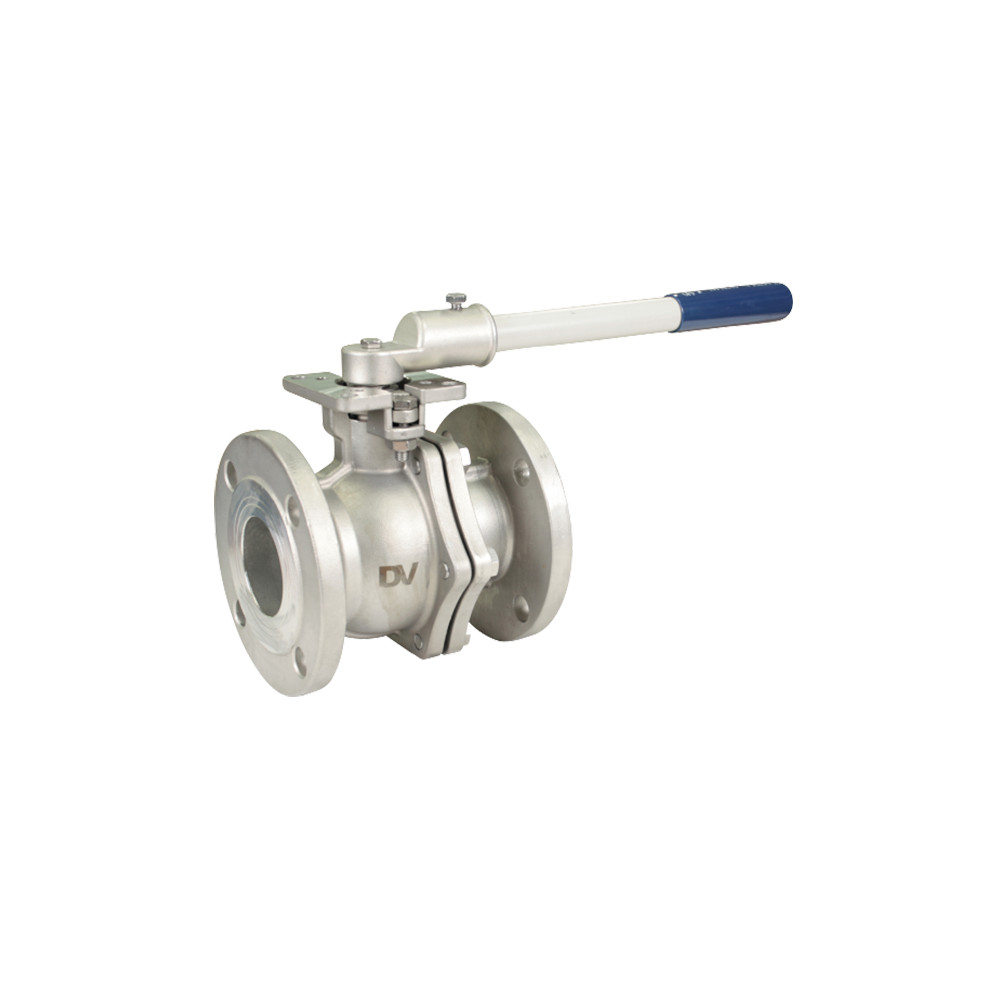

2-Piece Flanged Ball Valve, JIS 10K/20K, Full Bore
SIZE : 1/2″~16″
END CONNECTION :
MAX. PRESSURE :
MAX. TEMPERATURE :
PORT : FULL BORE
FLANGE : JIS 10K / 20K
MATERIAL : SCS14 (ASTM A351-CF8M) / - SCS13 (ASTM A351-CF8)
- BLOW OUT PROOF STEM
- LOCKING DEVICE
- LOWER BREAK-AWAY TORQUE
- SAND CASTING BODY & END CAP
APPLICABLE STANDARDS
- SHELL WALL THICKNESS : KS B2308
- FACE TO FACE DIMENSIONS : KS B2306
- END FLANGE DIMENSIONS : KS B1511
- GEARBOX OPERATED TYPE : 200A AND LARGER
OPTION
- LOCKING DEVICE
- OVAL HANDLE
