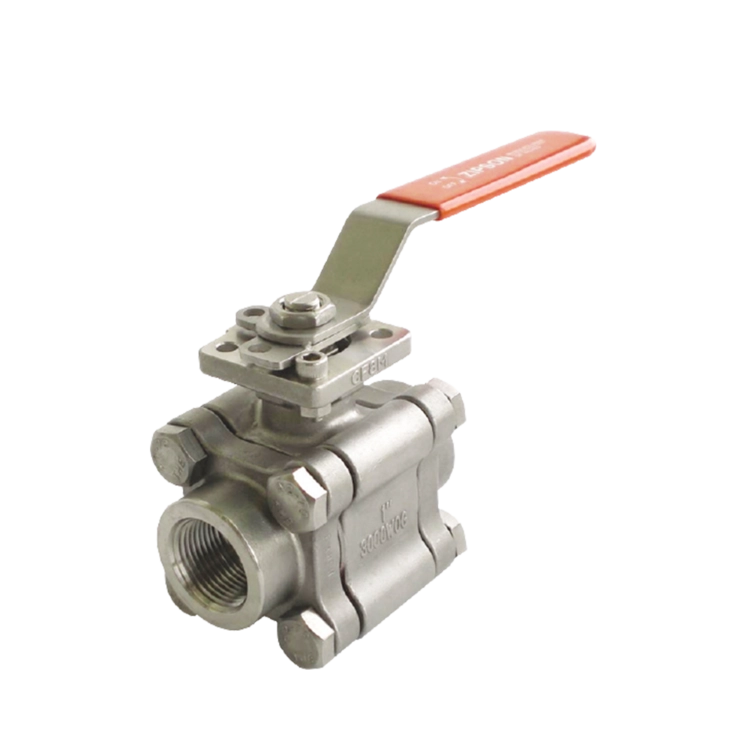

3-Piece Ball Valve, Threaded/SW/BW, Full Flow 3000PSI
SIZE : 1/4″~3″
END CONNECTION
- SCREWED : BS21 1973 (BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
- SOCKET WELD : JIS B2316, ANSI B16.11
- BUTT WELD (37.5˚)
MAX. PRESSURE : 3000PSI (211kg/cm²) W.O.G
MAX. TEMPERATURE : 230℃
PORT : FULL FLOW
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- 8 BOLTED ENCAPSULATED BODY
- BLOW-OUT PROOF STEM
- INVESTMENT CASTING BODY & END CAP
OPTION
- LOCKING DEVICE
- SPRING HANDLE (DEAD MAN HANDLE)
- V-FLOW BALL FOR CONTROL VALVE (15 30˚, 60˚AND 90˚)
- PTFE/PFA COATING (40~70㎛)
- FIRE SAFE DESIGN (API607)
- METAL SEATED DESIGN
- SPECIAL ALLOY : HASTELLOY C276 / SUPER DUPLEX / ALLOY 20 / MONEL 400
