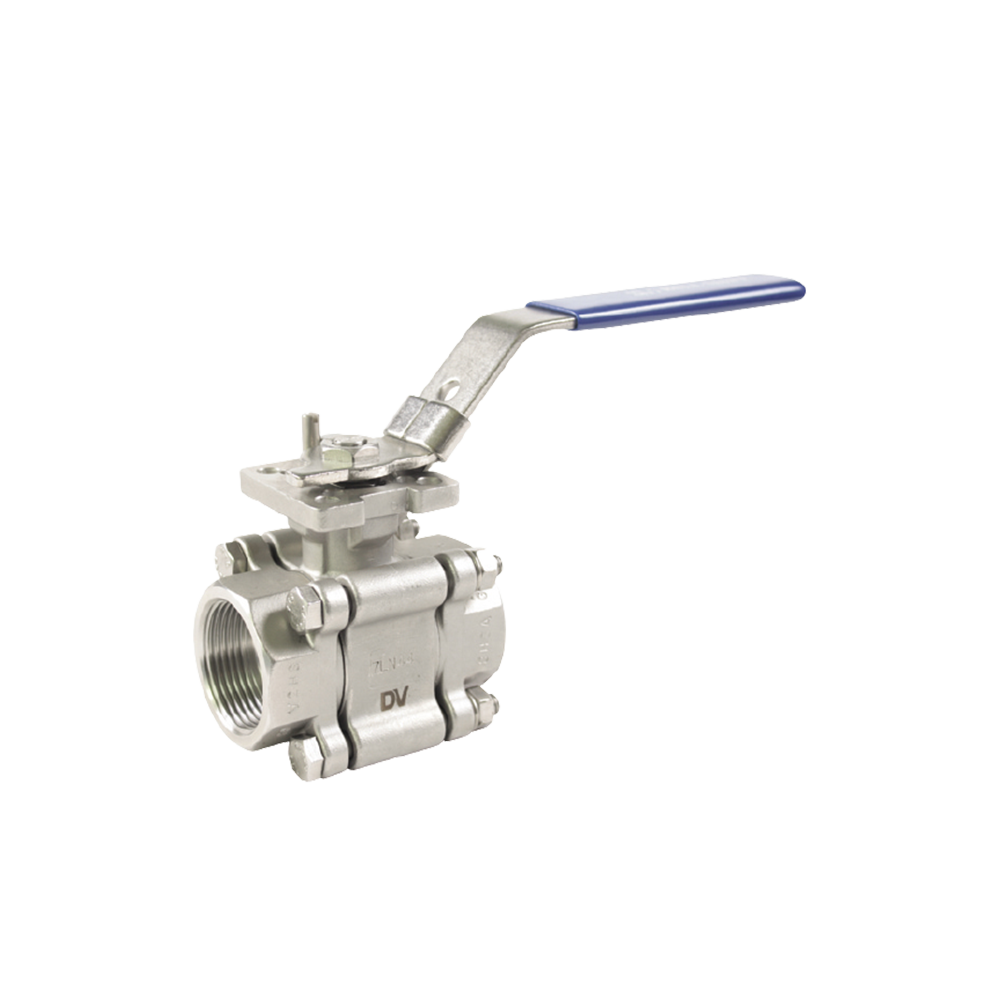

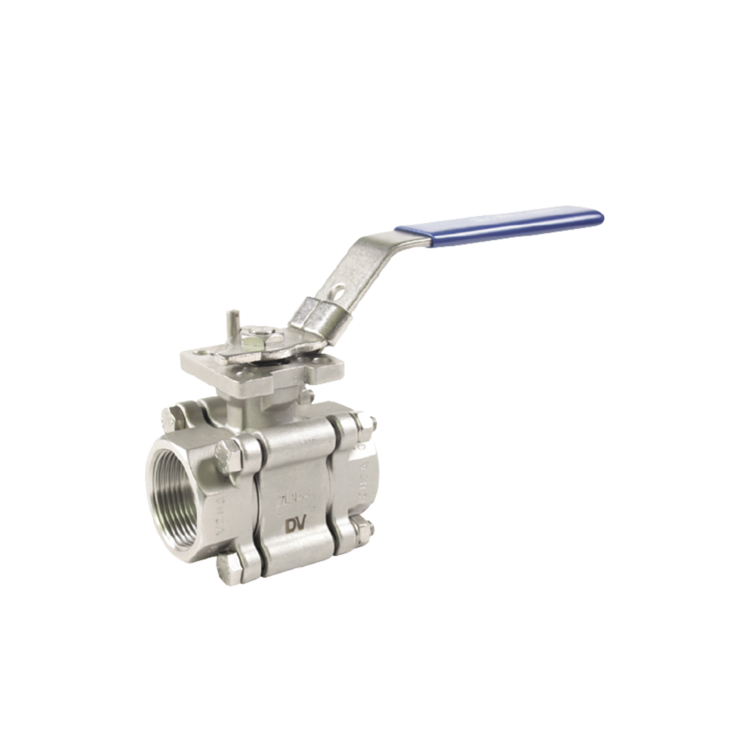

3-Piece Ball Valve, Threaded/SW/BW, Standard Flow, 2000PSI
SIZE : 1/4″~2-1/2″
END CONNECTION
- SCREWED : BS21 1973 (BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
- SOCKET WELD : JIS B2316, ANSI B16.11
- BUTT WELD (37.5˚)
MAX. PRESSURE
- 2000PSI (141 kg/cm²) .... 1/4″ to 1″
- 1500PSI (106 kg/cm²) .... 1-1/4″ to 2″
- 1000PSI ( 70 kg/cm²) .... 2-1/2″ to 4″
MAX. TEMPERATURE : 160℃
PORT : REDUCED FLOW
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- 8 BOLTED ENCAPSULATED BODY
- LUG BODY
- BLOW-OUT PROOF STEM
- INVESTMENT CASTING BODY & END CAP
OPTION
- LOCKING DEVICE
- FULL FLOW
- DIN STANDARD M3 LENGTH
- FIRE SAFE DESIGN (API607)
