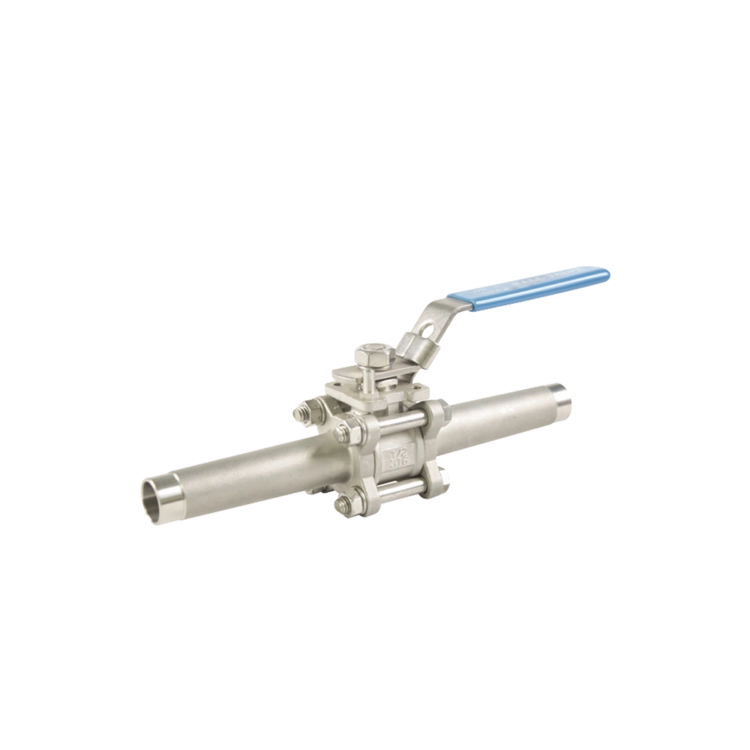

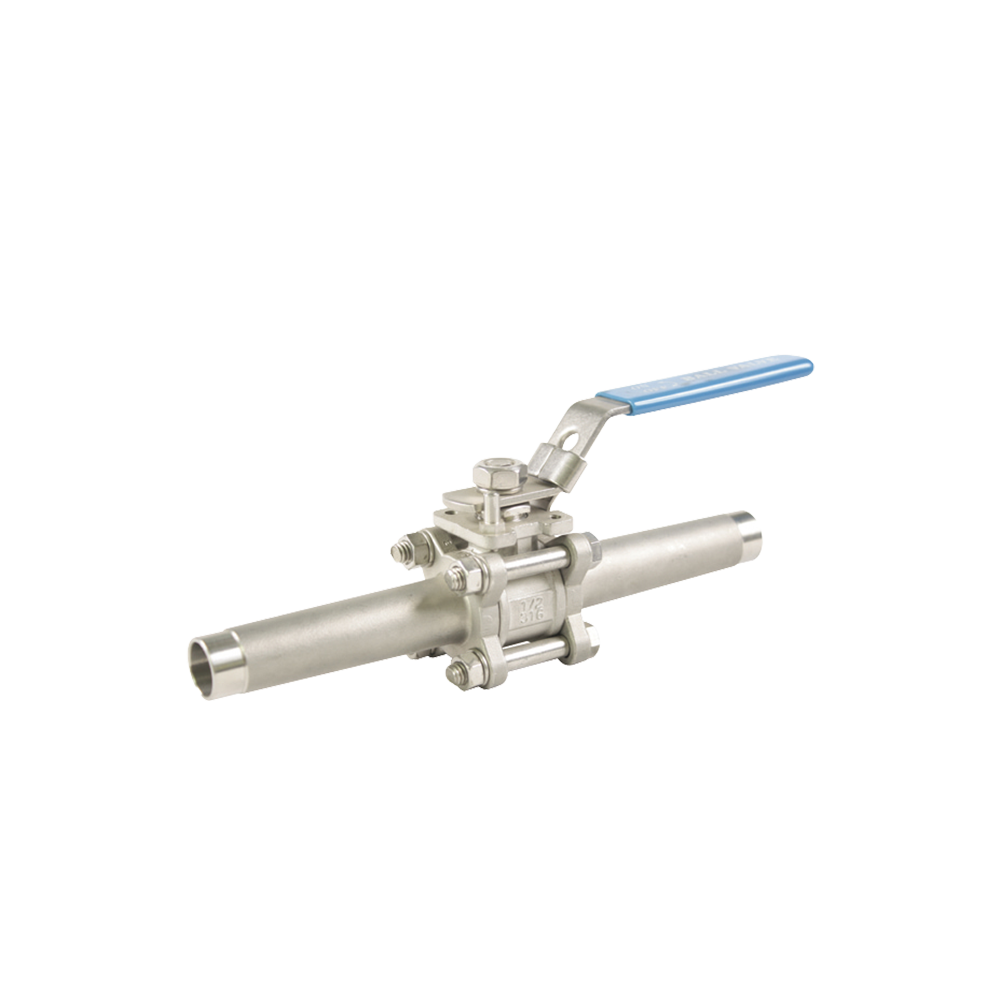

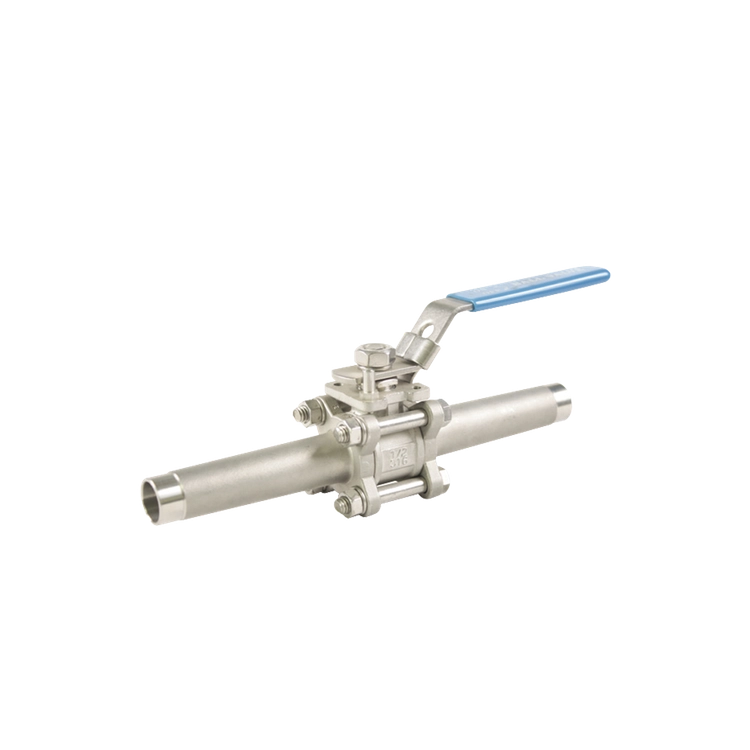

3-Piece Ball Valve, Long BW, Full Flow, 1000PSI
SIZE : 3/8″~4″
END CONNECTION : LONG BUTT WELD (JIS B2316)
MAX. PRESSURE : 1000PSI (70 kg/cm2) W.O.G
MAX. TEMPERATURE : 160℃
PORT : FULL FLOW
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- LUG BODY
- BLOW-OUT PROOF STEM
- INVESTMENT CASTING BODY & END CAP
OPTION
- LOCKING DEVICE
- ISO 5211 MOUNTING PAD
- END CAP 316L (1.4409)
- LONG BUTT WELD (ANSI B16.11)
