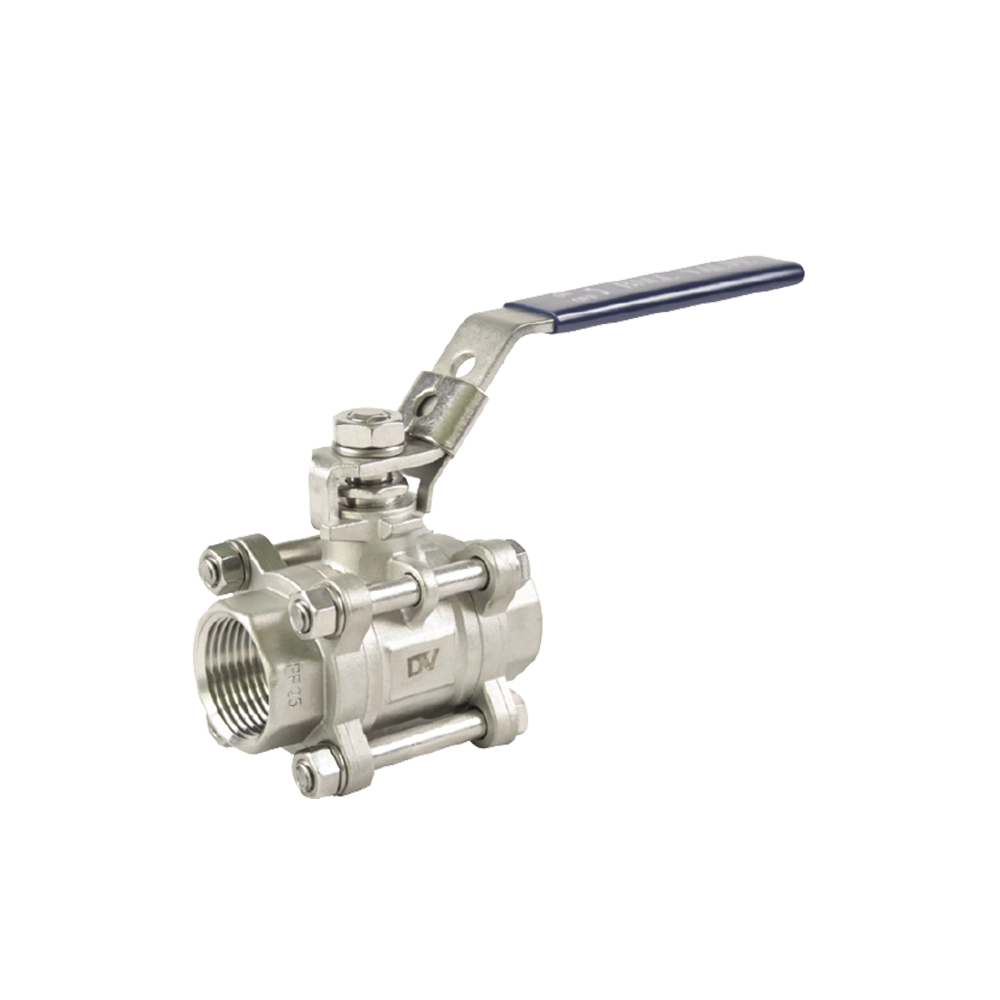

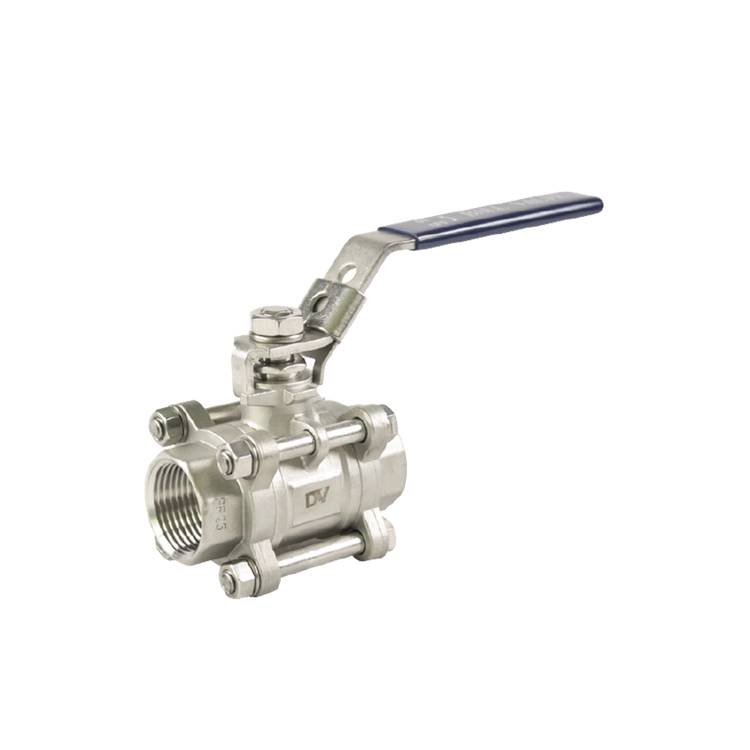

3-Piece Ball Valve, Threaded/SW/BW, Full Flow, 1000PSI
SIZE : 1/4″~4″
END CONNECTION
- SCREWED : BS21 1973 (BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
- SOCKET WELD : JIS B2316
- BUTT WELD (37.5)
MAX. PRESSURE : 1000PSI (70 kg/cm2) W.O.G
MAX. TEMPERATURE : 160℃
PORT : FULL FLOW
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- LUG BODY
- BLOW-OUT PROOF STEM
- INVESTMENT CASTING BODY & END CAP
OPTION
- LOCKING DEVICE
- 5″, 6″& 8″ (BUTT WELD ENDS)
- SOCKET WELD : ANSI B16.11
