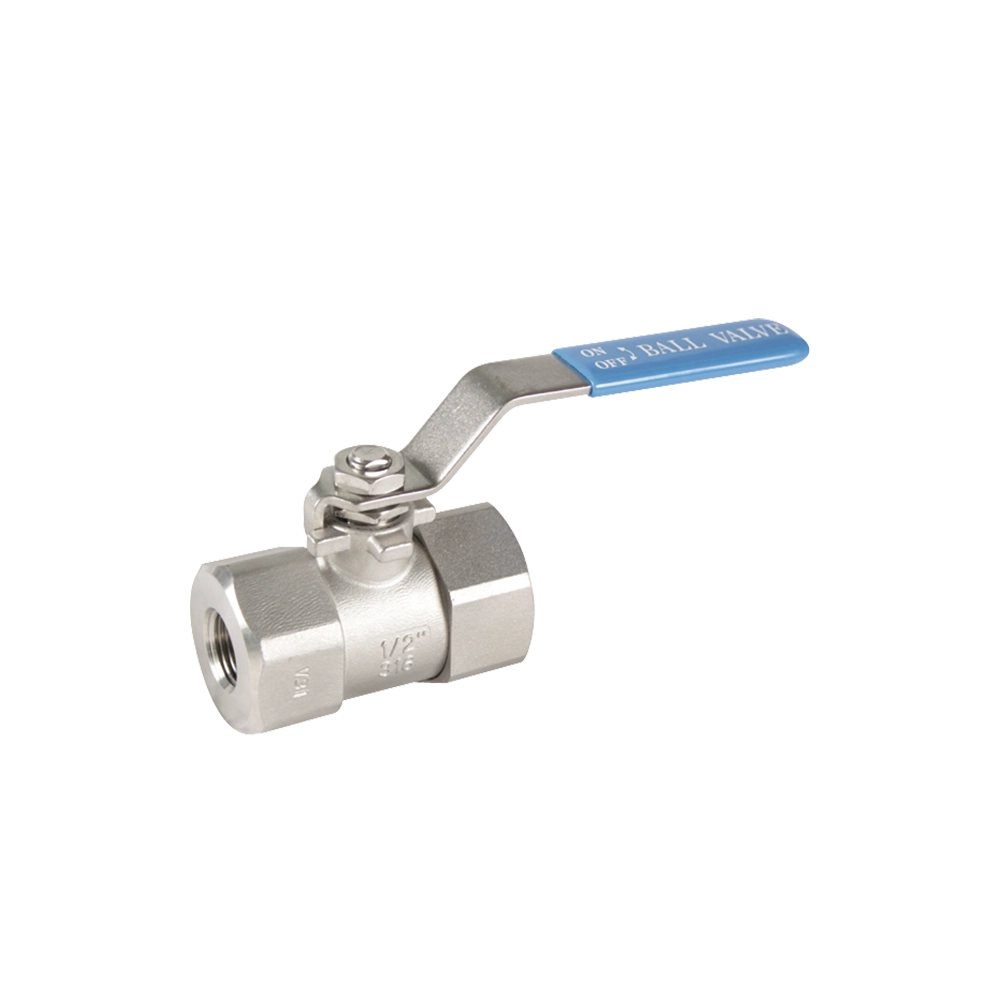

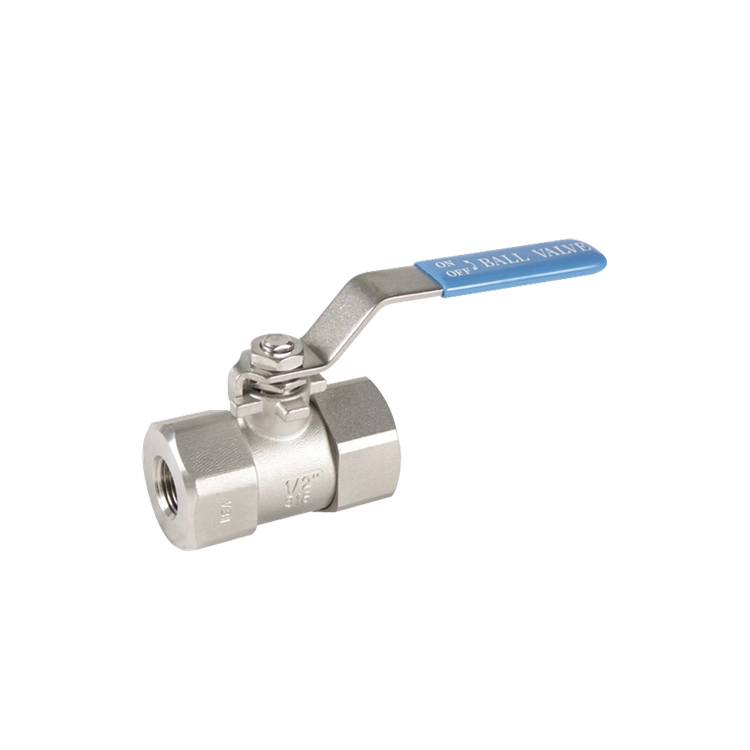

2-Piece Ball Valve, Threaded, Full Flow, 6000PSI
SIZE : 1/4″~2″
END CONNECTION : BS21 1973(BSPT), ANSI B2.1(NPT), DIN 259/2999, ISO 228
MAX. PRESSURE : 6000PSI (422 kg/cm2) W.O.G
MAX. TEMPERATURE : 160℃ (1/4"~1") / 260℃ (1.1/4"~2")
PORT : FULL FLOW
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- INVESTMENT CASTING BODY
- BLOW-OUT PROOF STEM
- CASTING HANDLE
OPTION
- ISO 5211 MOUNTING PAD
- LOCKING DEVICE(MOUNTING PAD TYPE ONLY)
- PRESS HANDLE
