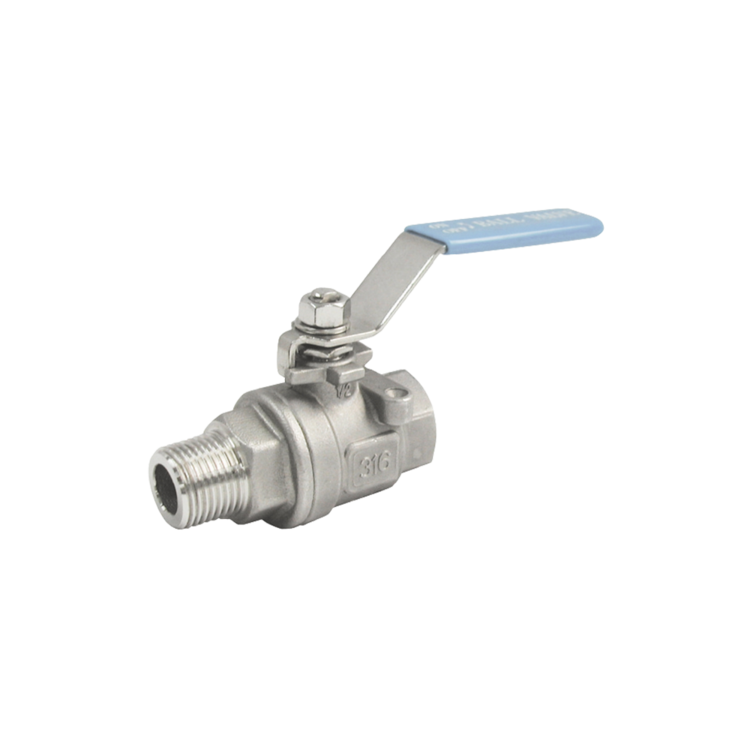

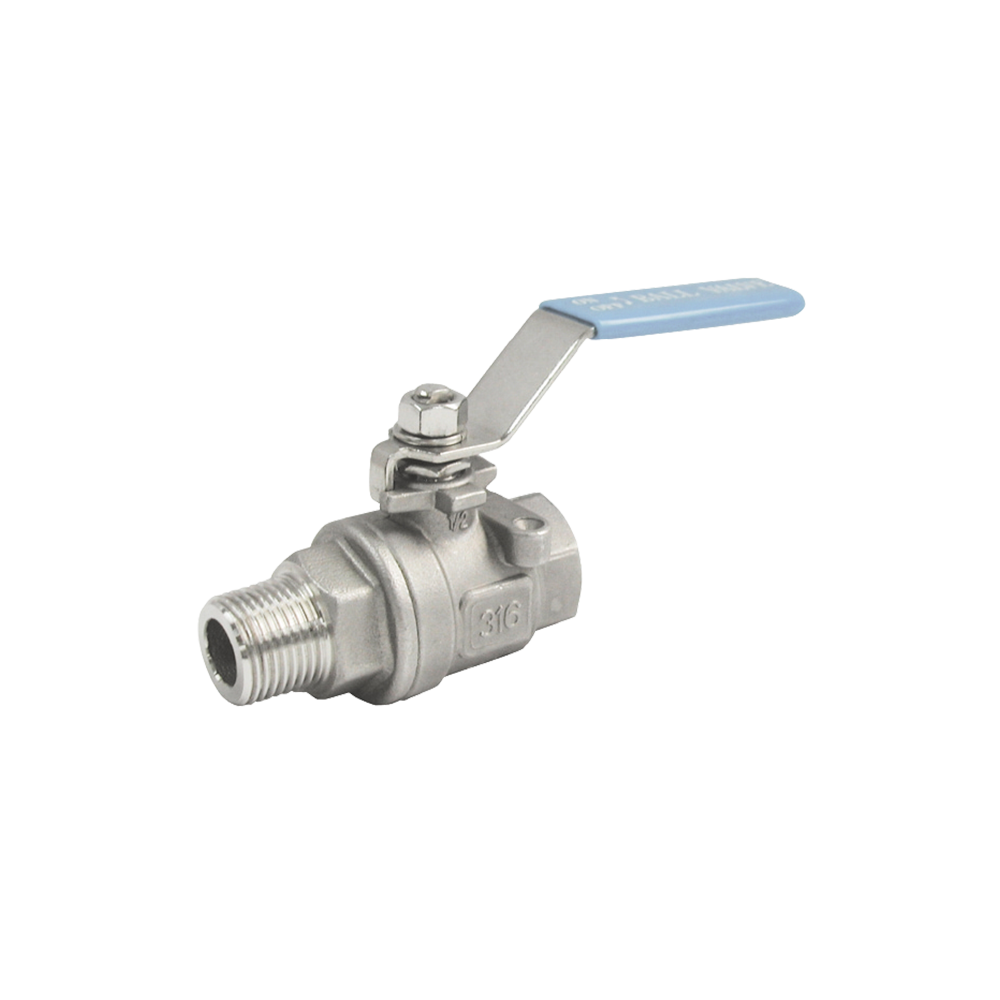

2-Piece Ball Valve, Threaded Female x Male, Full Flow, 1000PSI
SIZE : 1/4″~2″
END CONNECTION : BS21 1973(BSPT), ANSI B2.1(NPT), DIN 259/2999, ISO 228
MAX. PRESSURE : 1000PSI (70 kg/cm2) W.O.G
MAX. TEMPERATURE : 160℃
PORT : FULL FLOW
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8M (1.4408)
- WITH MOUNTING PAD
- INVESTMENT CASTING BODY & END CAP
- BLOW-OUT PROOF STEM
OPTION
- LOCKING DEVICE
- DRILLED AND TAPPED MOUNTING PAD
