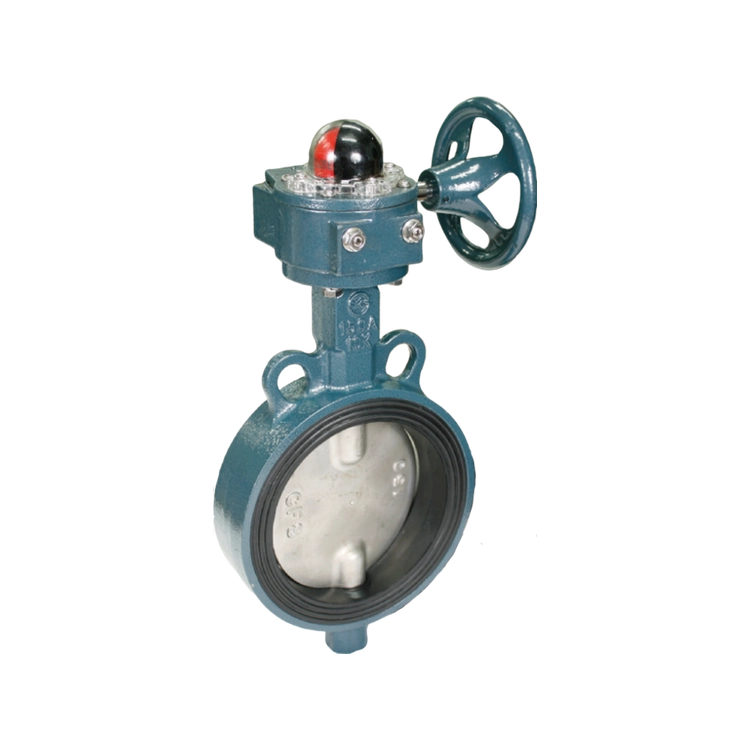

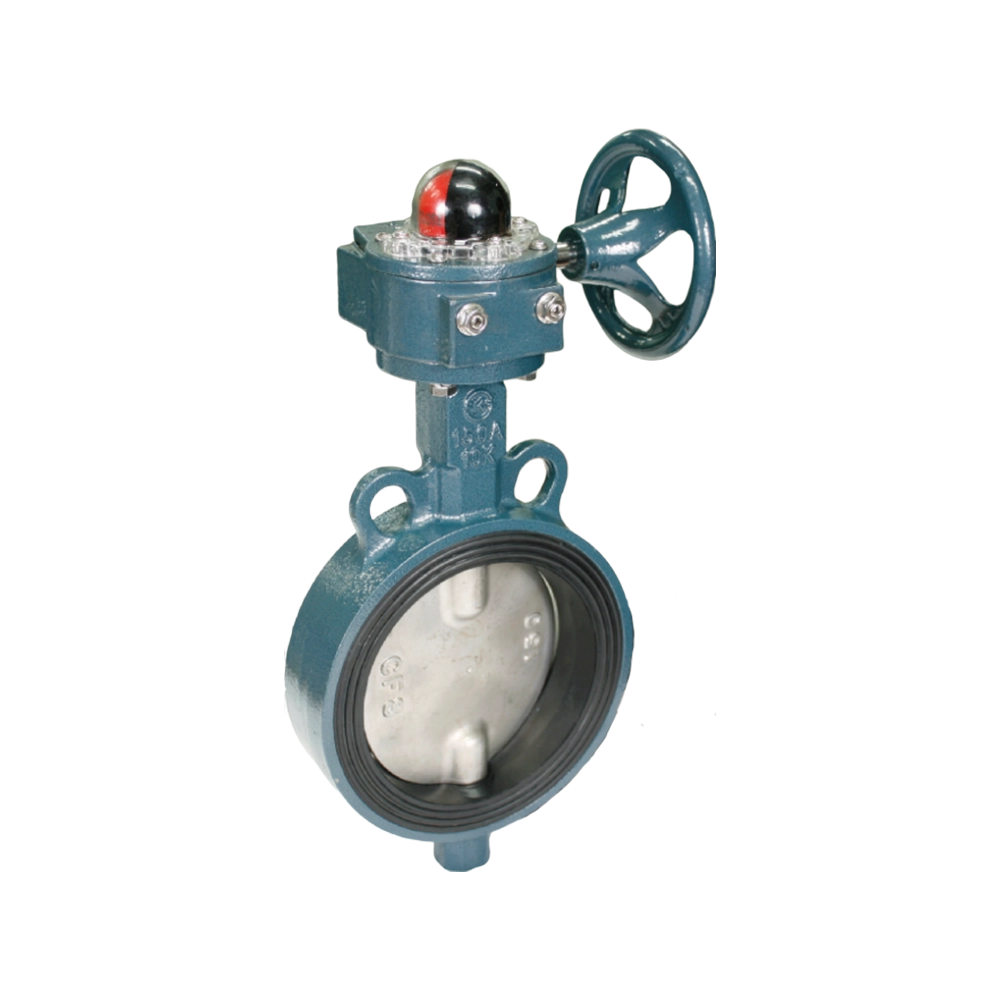

DESCRIPTION
Suitable for clear fluid lines such as Water, Liquid, gas, Steam etc. This valve is used in systems that require precise flow-control and where leakage and air-tightness are critical.
APPLICATION
It is essential for the flow line of each industry. Mainly used in plant automation facilities due to excellent precision control such as flow rate, pressure, temperature, etc.
CHARACTERISTICS
- For excellent wear and tear resistence, Stellite welding is used by default on core components such as plug and seat ring.
- It is possible to achieve excellent durability of unfavorable fluid condition and high temperature throughhear=-treatment on pars of the stem and trim.
- The selection of accurate trim and material through extensive testing and rich experience in technical solution.
- In case of a product related problem, we have technical personnel who can immediately assess the situation and resolve theissue.
TYPE | STAINLESS STEEL PLUMBING VALVE | SANITARY VALVE | VACUUM VALVE |
SIZE | 1-1/2”(40A) ~120”(3000A) | 0.5S ~ 4.0S | NW25~160 |
BODY | SCS16(CF3M), SCS14(CF8M), SCS13(CF8), FCD, FC | SCS313(CF8), SCS14(CF8M) | SCS13(CF8) |
SEAT | EPDM, NBR, PTFE, RTFE, VITON | EPDM, NBR, PTFE, RTFE, VITON | SILICONE, EPDM |
END CONNECTION | WAFER, LUG, FLANGED | T-CLAMP ENDS | NW, ISO |
OPERATION | MANUAL, AUTOMATIC(PNEUMATIC, ELECTRIC) | ||
