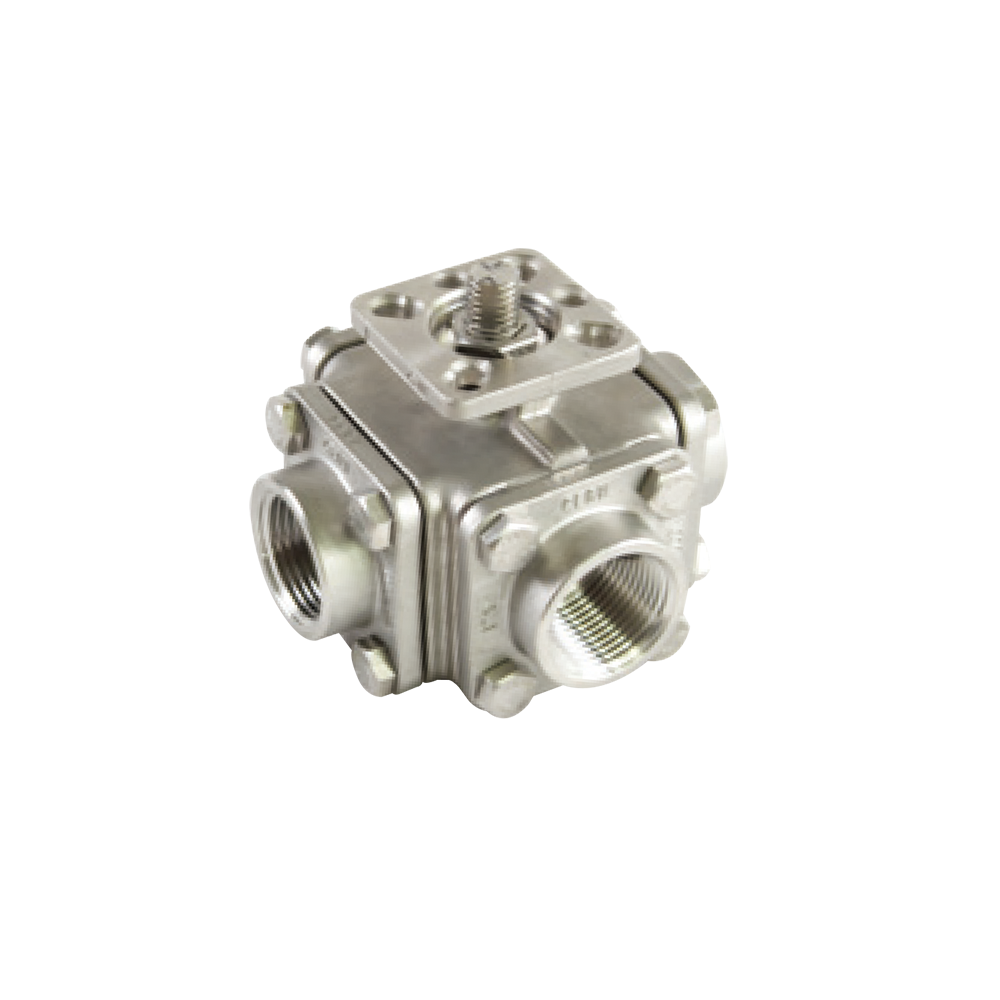

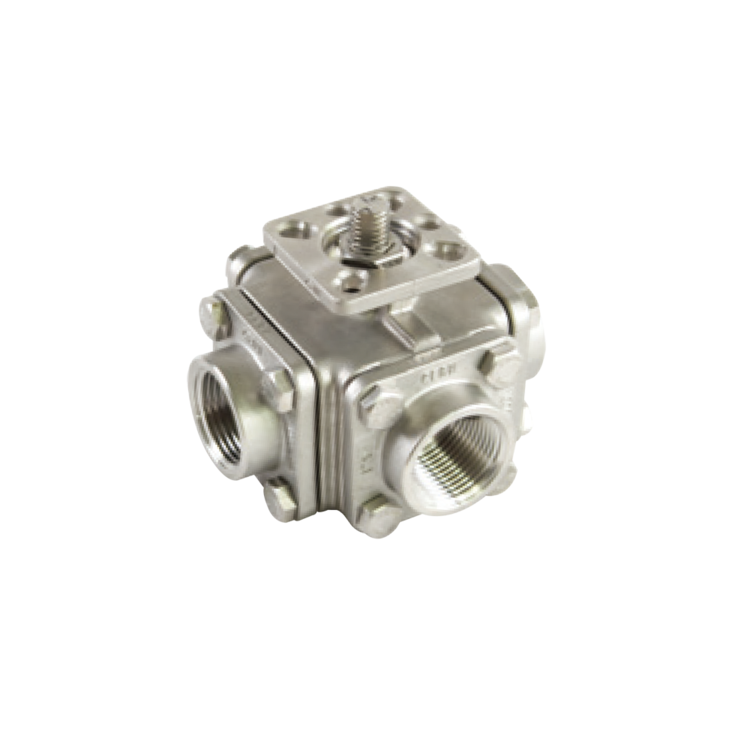

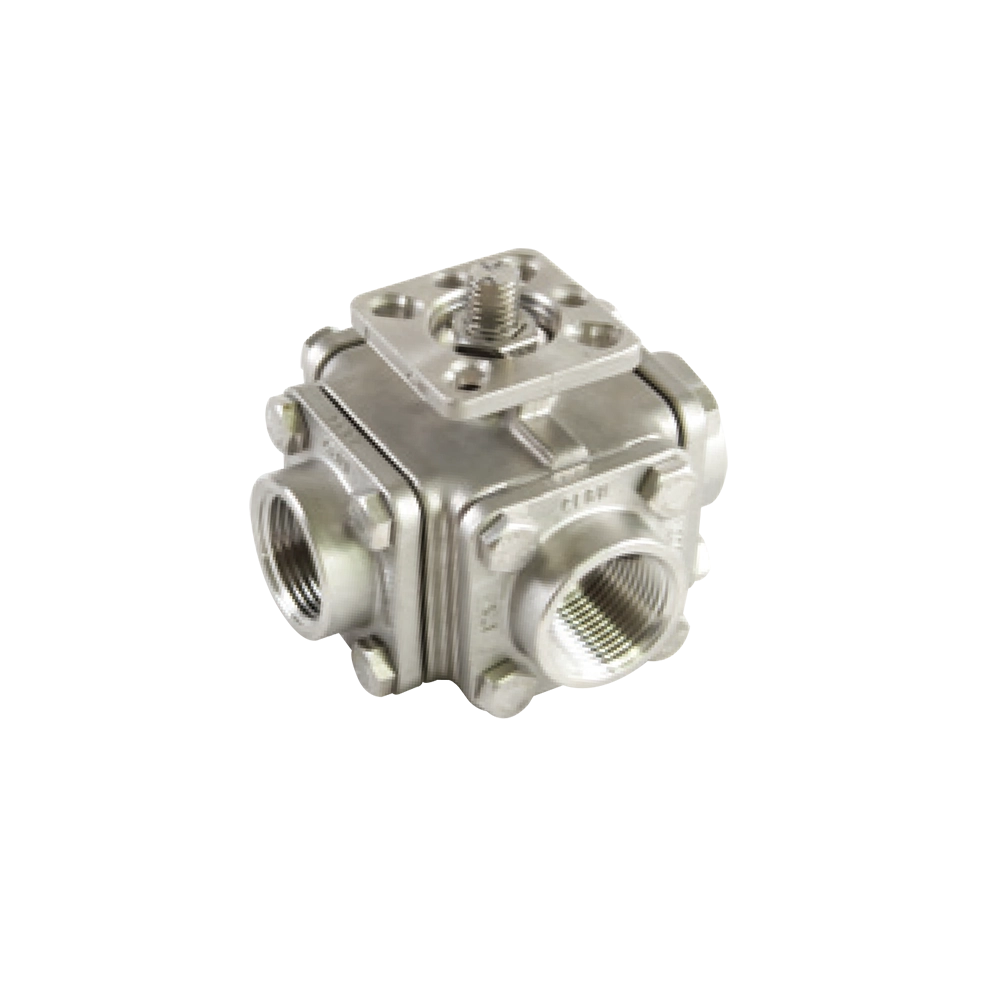

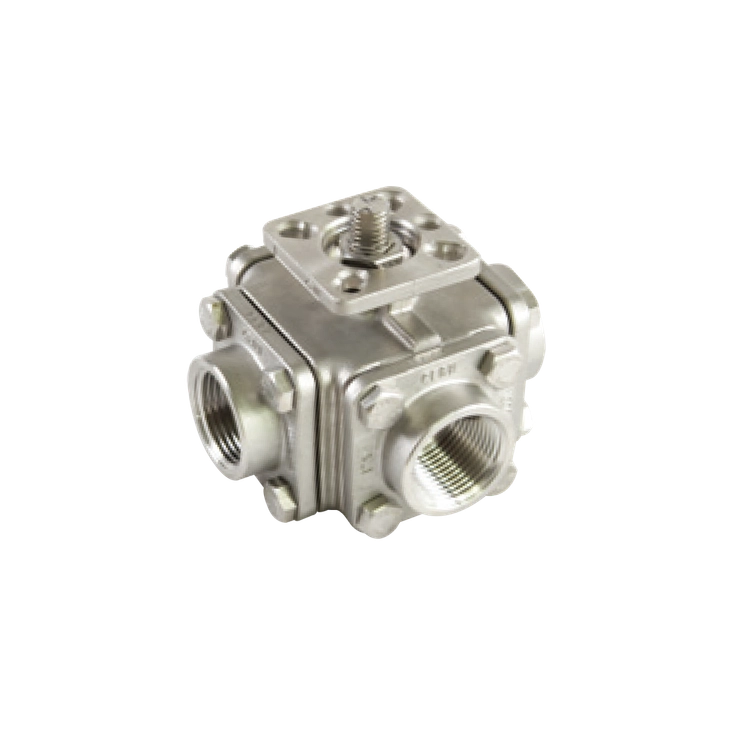

3/4/5-Way Ball Valve, Threaded, Standard Flow, 800PSI
SIZE : 1/4″~4″
END CONNECTION
- SCREWED : BS21 1973(BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
- SOCKET WELD : JIS B2316, ANSI B16.11
- BUTT WELD (37.5˚)
MAX. PRESSURE : 800PSI (56kg/cm²)
MAX. TEMPERATURE: 180℃
PORT : STANDARD FLOW
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- AVAILABLE IN L , T, X & I-POSITION
- DIRECT MOUNTING PAD ISO5211
- 4 BALL SEATS DESIGN
- LOCKING FUNCTION
- BLOW-OUT PROOF STEM
- INVESTMENT CASTING BODY & END CAP
OPTION
- FULL PORT
- CARBON FILLED TEFLON SEAT
- PTFE / PFA COATING (40~70㎛)
- CAVITY FILLED TEFLON SEAT
- 180˚OPERATION STOP PLATE
- STEAM JACKET
- FIRE SAFE DESIGN
- SPECIAL ALLOY : HASTELLY C276 / SUPER DUPLEX / ALLOY 20 / MONEL 400
