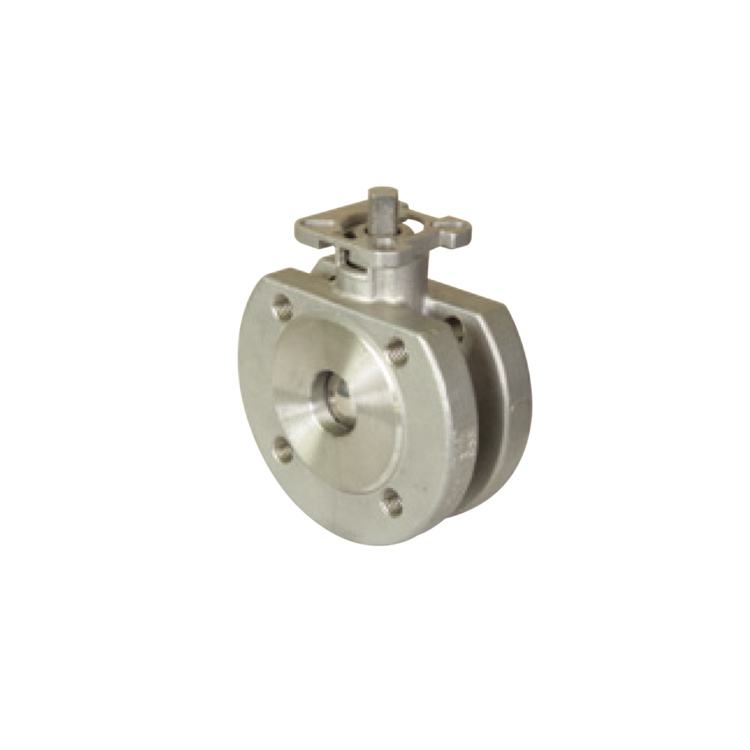

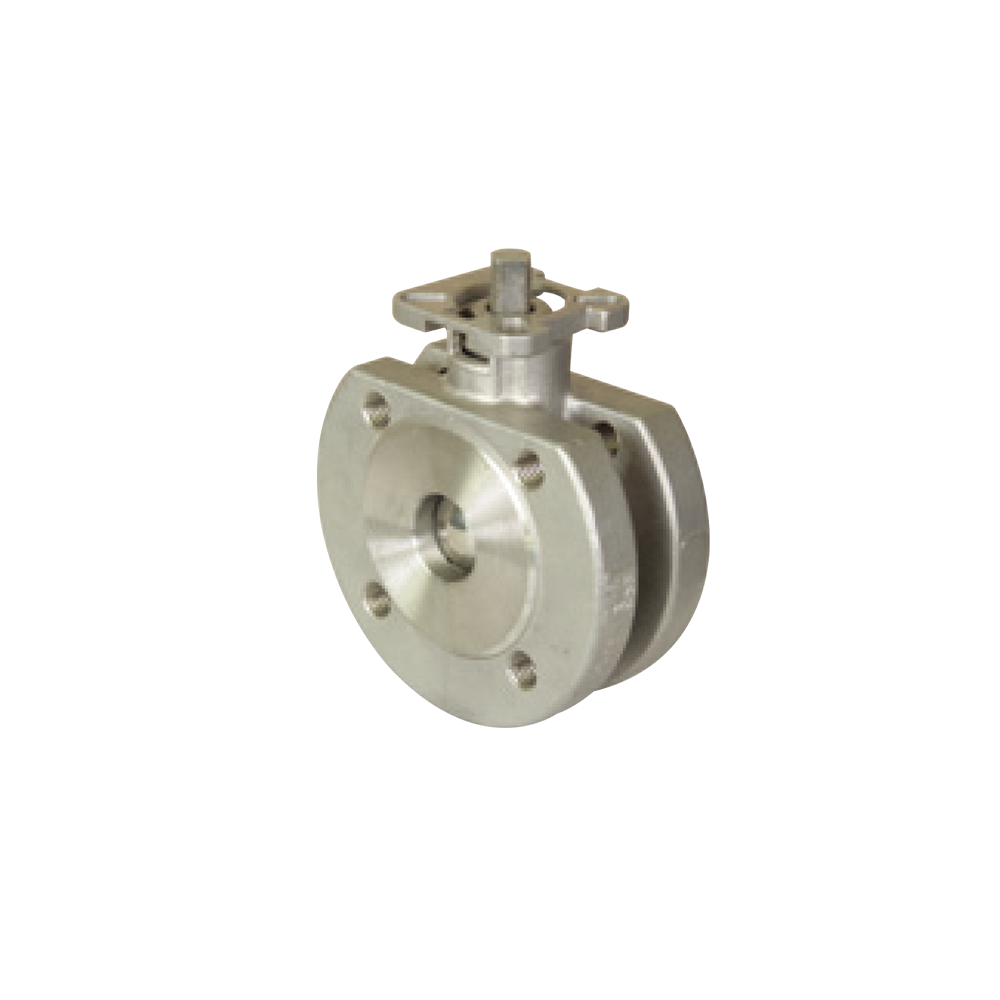

1-Piece Wafer Flanged Ball Valve, PN 16, Full Bore
SIZE : 1/4″~4″
END CONNECTION
- SCREWED : BS21 1973(BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
- SOCKET WELD : JIS B2316, ANSI B16.11
- BUTT WELD (37.5˚)
MAX. PRESSURE
- PN 40 (1/2″~1-1/2″)
- PN 16 (2″~4″)
MAX. TEMPERATURE: 160℃
PORT : FULL BORE
FLANGE : PN 16
MATERIAL : DIN 1.4408 (A351-CF8M)
- PRESSURE TESTING : EN12266
- ISO5211 DIRECT MOUNTING PAD
- EXTRA HIGH CYCLE LIFE (LOADED DOUBLE SEALING)
- COMPACT SPACE SAVING DESIGN
- ANTI-STATIC DEVICE
- BLOW OUT PROOF STEM
- SOLID BALL
- INVESTMENT CASTING BODY
