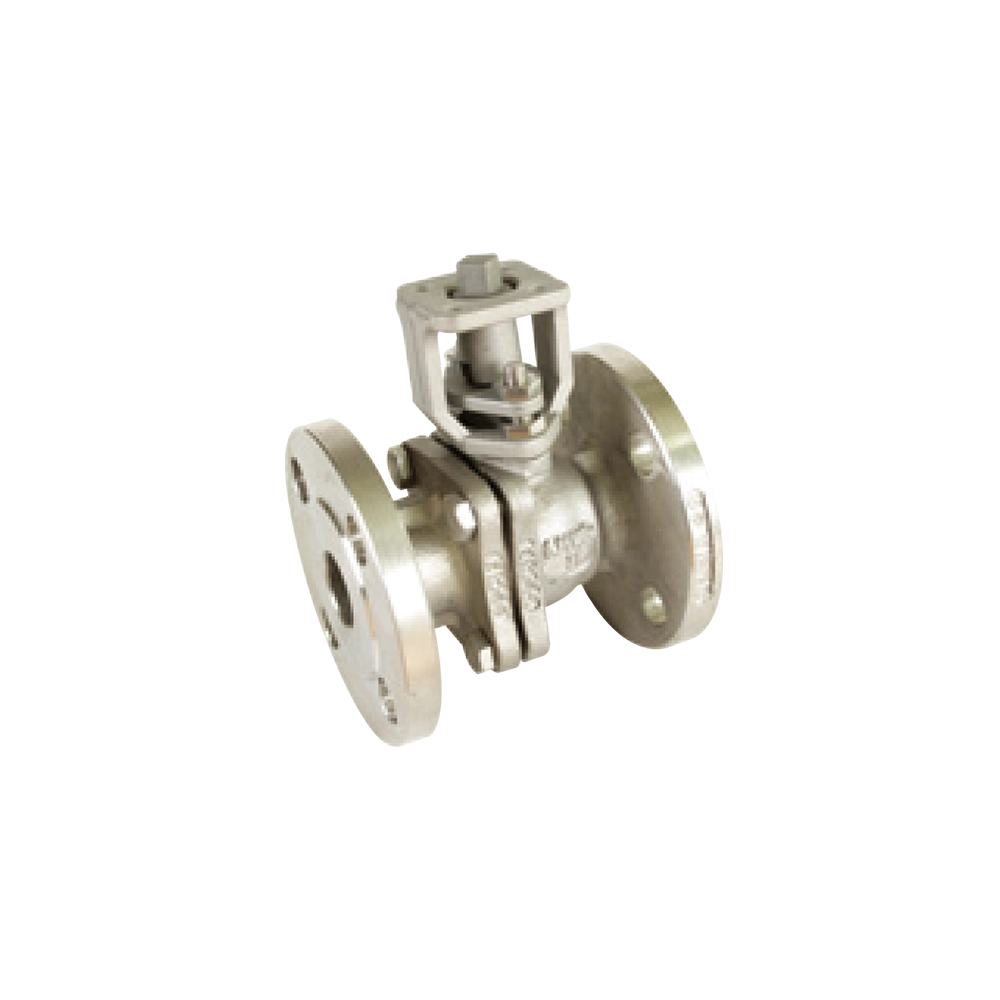

2-Piece Flanged Ball Valve, JIS 10K/20K, Full Bore
SIZE : 1/2″~12″
END CONNECTION :
MAX. PRESSURE :
MAX. TEMPERATURE:
PORT : FULL BORE
FLANGE : JIS 10K/20K
MATERIAL : SCS14 (ASTM A351-CF8M), SCS13 (ASTM A351-CF8)
- BLOW-OUT PROOF STEM
- LOCKING DEVICE
- LOWER BREAK AWAY TORQUE
- SAND CASTING BODY & END CAP
APPLICABLE STANDARDS
- FACE TO FACE DIMENSION : KS B2308
- END FLANGE DIMENSION : KS B1511
- SHELL WALL THICKNESS : KS B2308
- GEARBOX OPERATOR : 200A (8′) & LARGER
