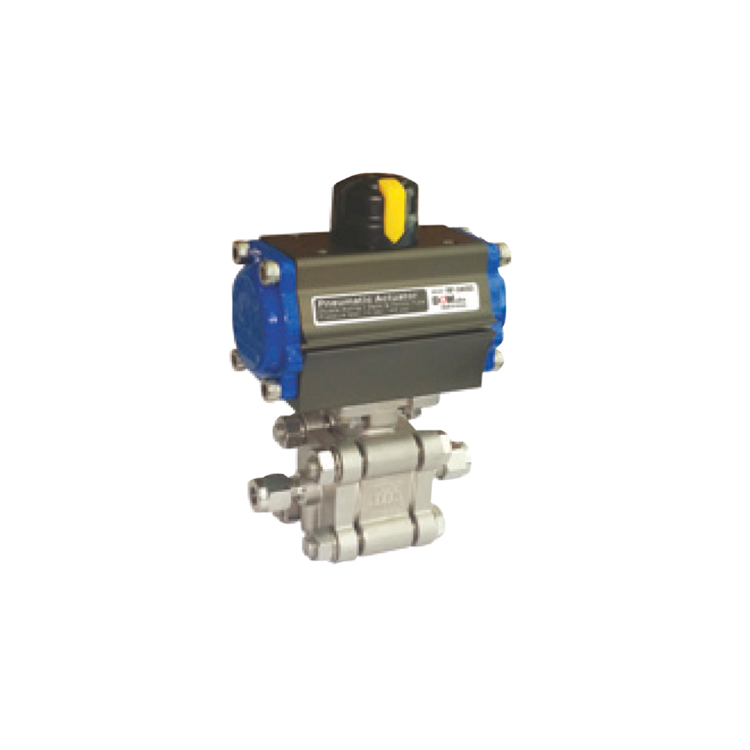

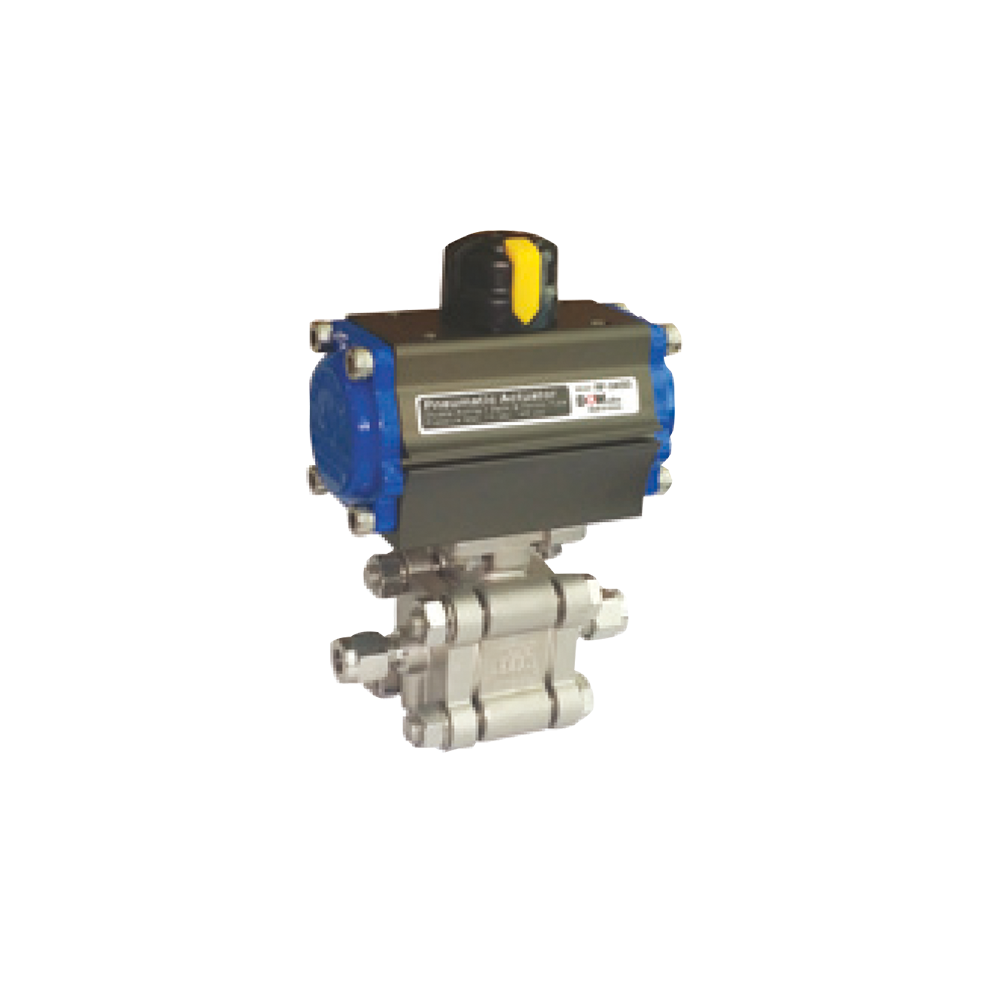

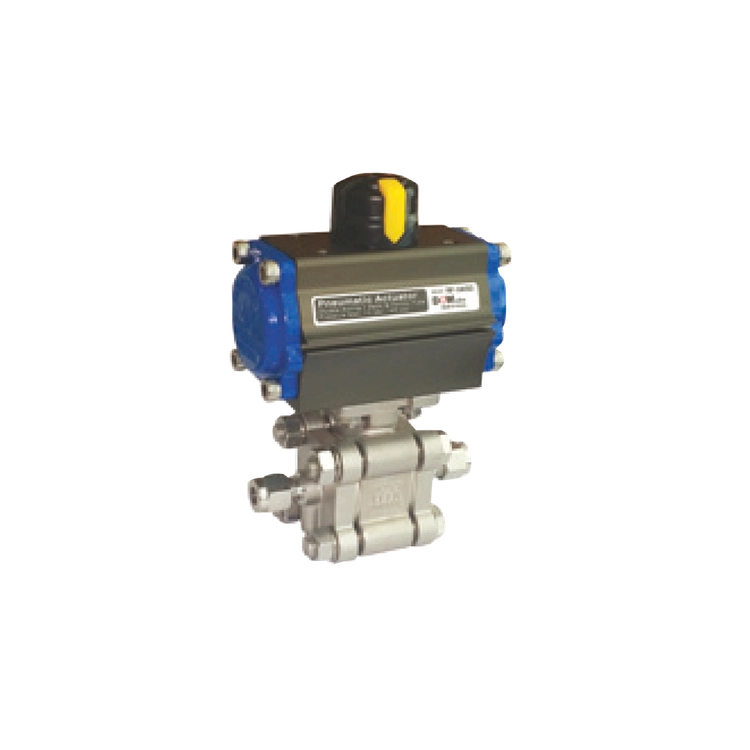

Pneumatic 3-Piece Instrumentation Ball Valve / Double Acting
SIZE : 1/4″~3/4″
END CONNECTION : LOK TUBE FITTING
MAX. PRESSURE : 2000PSI (141kg/cm²)
MAX. TEMPERATURE: 180℃
PORT : REDUCED FLOW
MATERIAL : ASTM A351-CF8M (1.4408)
- ISO 5211 DIRECT MOUNTING PAD
- EASY IN-LINE MAINTENANCE
- BLOW-OUT PROOF STEM
- SILVER PLATED NUT STANDARD
- HEAT TREATED FERRULES STANDARD
- AP / BA GRADE
- RO CLEANED, CLEAN ROOM PACKAGED WITH CLASS 10,000 & OIL FREE
- HELIUM LEAK TEST APPROVED
OPTION
- VARIETY OF END CONNECTIONS
PNEUMATIC ACTUATOR : DOUBLE ACTING
○ ACCESSORIES
- SOLENOID VALVE (WEATHER / EXPLOSION PROOF)
- LIMIT SWITCH BOX (WEATHER / EXPLOSION PROOF)
- ELECTRO-PNEUMATIC POSITIONER
- FILTER REGULATOR UNIT
- SPEED CONTROLLER
- SILENCER (METAL)
- ONE TOUCH FITTING (6Ø, 8Ø)
