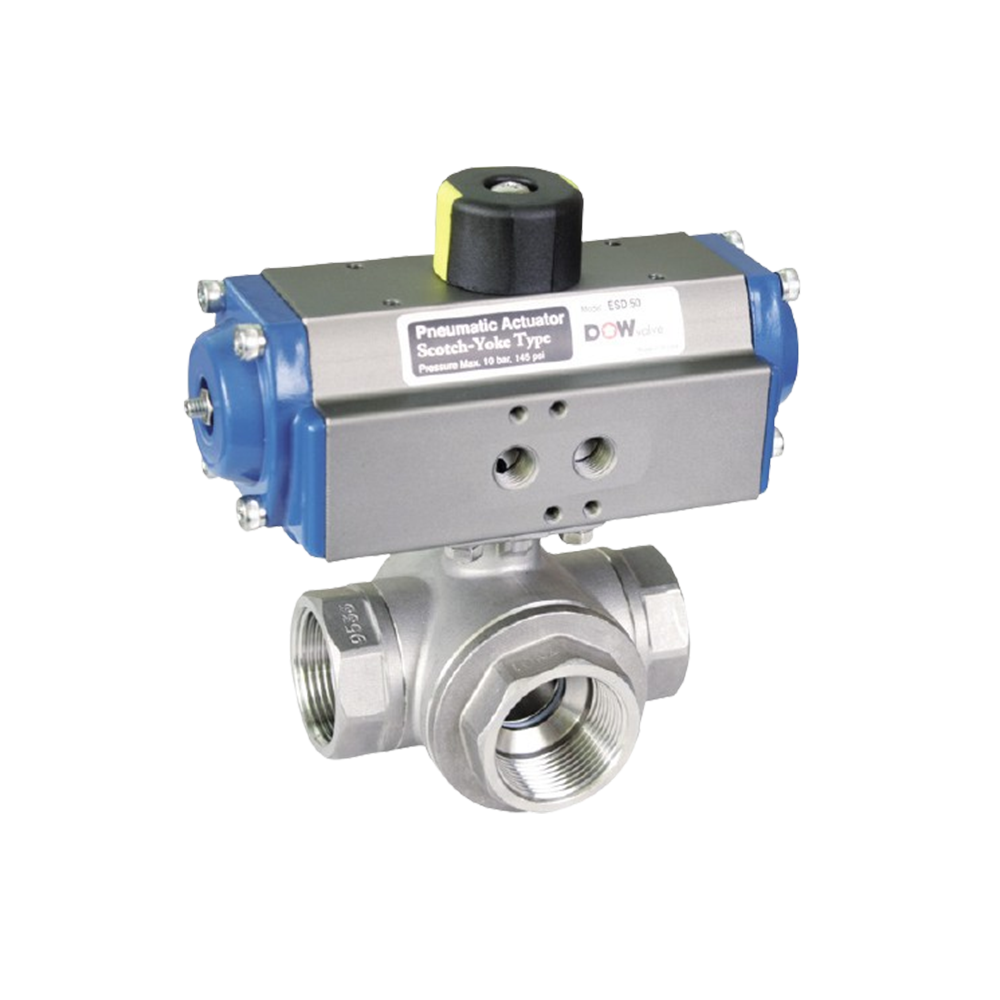

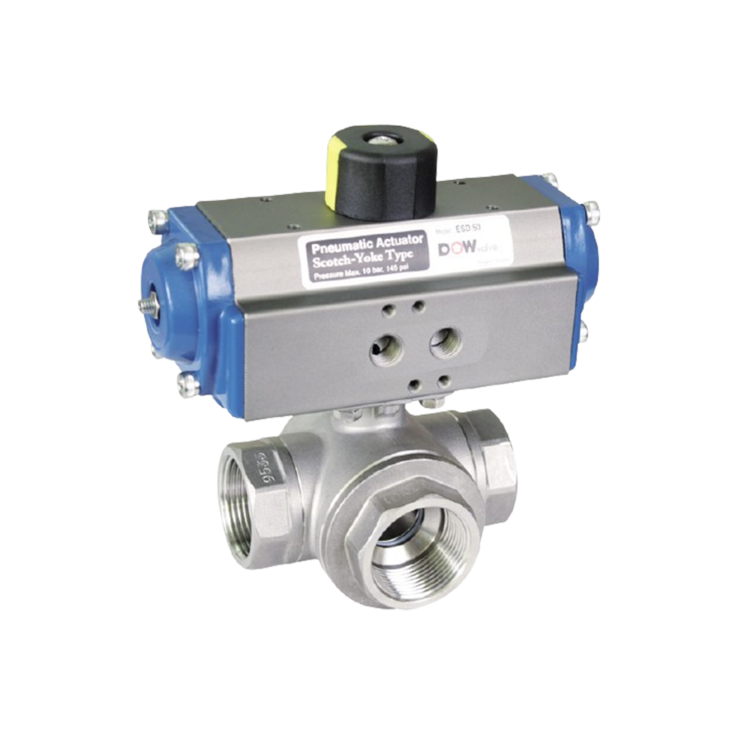

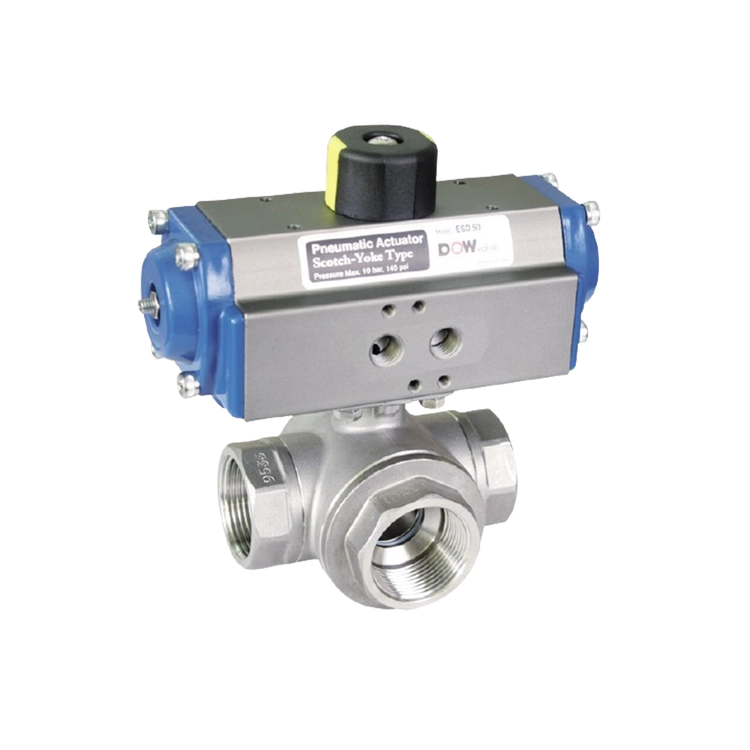

Pneumatic 3-Way Ball Valve / Double Acting
SIZE : 1/4″~2″
END CONNECTION : BS21 1973 (BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
MAX. PRESSURE
- 1000PSI (70kg/cm²) W.O.G 1/4″~1-1/4″
- 800PSI (56kg/cm²) W.O.G 1-1/2″~2″
MAX. TEMPERATURE: 180℃
PORT : STANDARD FLOW
MATERIAL : ASTM A351-CF8M (1.4408)
- ISO 5211 DIRECT MOUNTING PAD
- AVAILABLE IN L OR T-POSITION
- 4 BALL SEATS DESIGN
- BLOW-OUT PROOF STEM
- INVESTMENT CASTING BODY & END CAP
OPTION
- FULL PORT
- SOCKET WELD ENDS (JIS B2316)
- CARBON FILLED TEFLON SEAT
- PTFE / PFA COATING (40-70㎛)
- 180˚OPERATION STOP PLATE
PNEUMATIC ACTUATOR : DOUBLE ACTING
○ ACCESSORIES
- SOLENOID VALVE (WEATHER / EXPLOSION PROOF)
- LIMIT SWITCH BOX (WEATHER / EXPLOSION PROOF)
- ELECTRO-PNEUMATIC POSITIONER
- FILTER REGULATOR UNIT
- SPEED CONTROLLER
- SILENCER (METAL)
- ONE TOUCH FITTING (6Ø, 8Ø)
