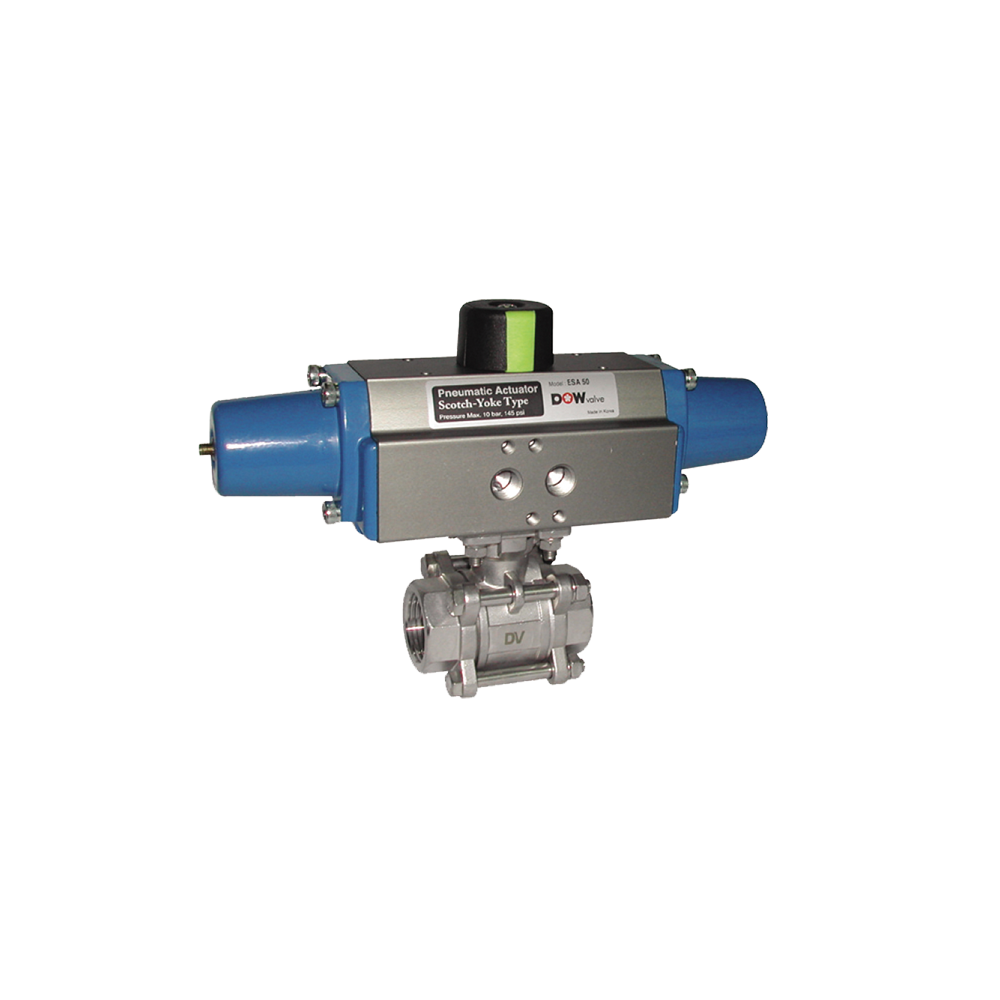

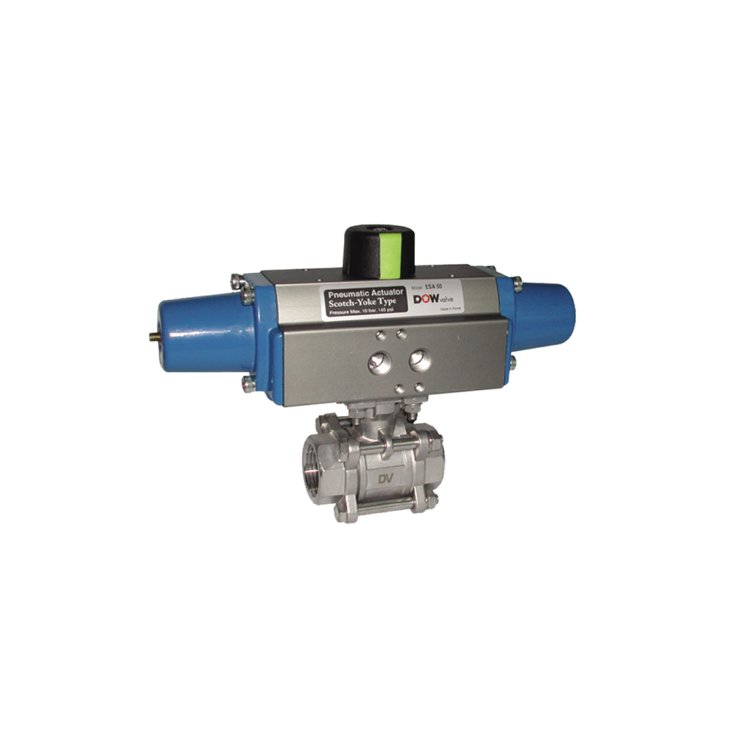

Pneumatic 3-Piece Ball Valve / Single Acting (Spring Return)
SIZE : 1/4″~4″
END CONNECTION
- SCREWED : BS21 1973 (BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
- SOCKET WELD : JIS B2316, ANSI B16.11
MAX. PRESSURE
- 1000PSI (70kg/cm²) W.O.G .... 1/4″~2″
- 800PSI (56kg/cm²) W.O.G .... 2-1/2″~6″
MAX. TEMPERATURE: 160℃
PORT : FULL FLOW
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- ISO5211 DIRECT MOUNTING PAD
- INVESTMENT CASTING BODY & CAP
- BLOW-OUT PROOF STEM
OPTION
- V-PORT (30˚, 45˚, 60˚)
- 5″ & 6″= ONLY BUTT WELD ENDS
PNEUMATIC ACTUATOR : SINGLE ACTING
○ ACCESSORIES
- SOLENOID VALVE (WEATHER / EXPLOSION PROOF)
- LIMIT SWITCH BOX (WEATHER / EXPLOSION PROOF)
- ELECTRO-PNEUMATIC POSITIONER
- FILTER REGULATOR UNIT
- SPEED CONTROLLER
- SILENCER (METAL)
- ONE TOUCH FITTING (6Ø, 8Ø)
