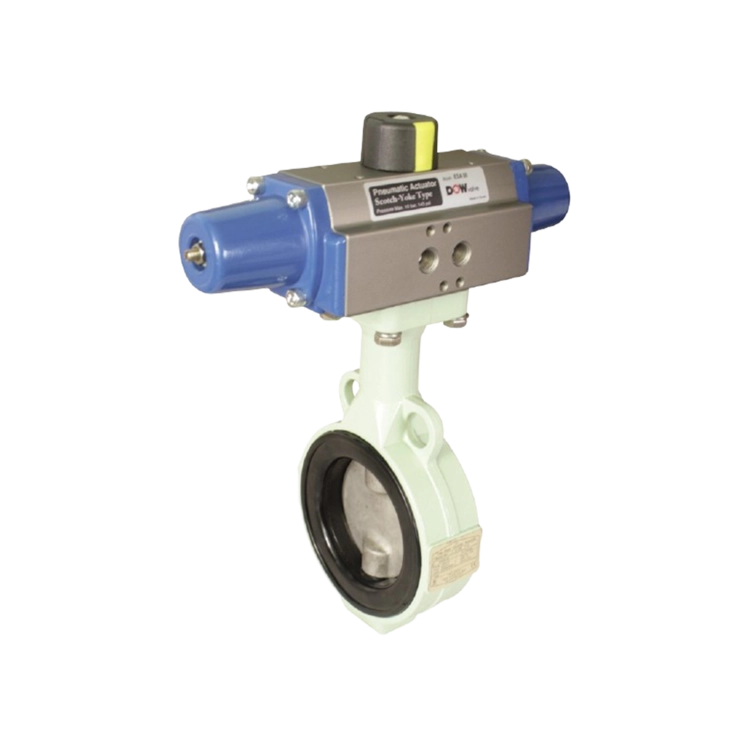

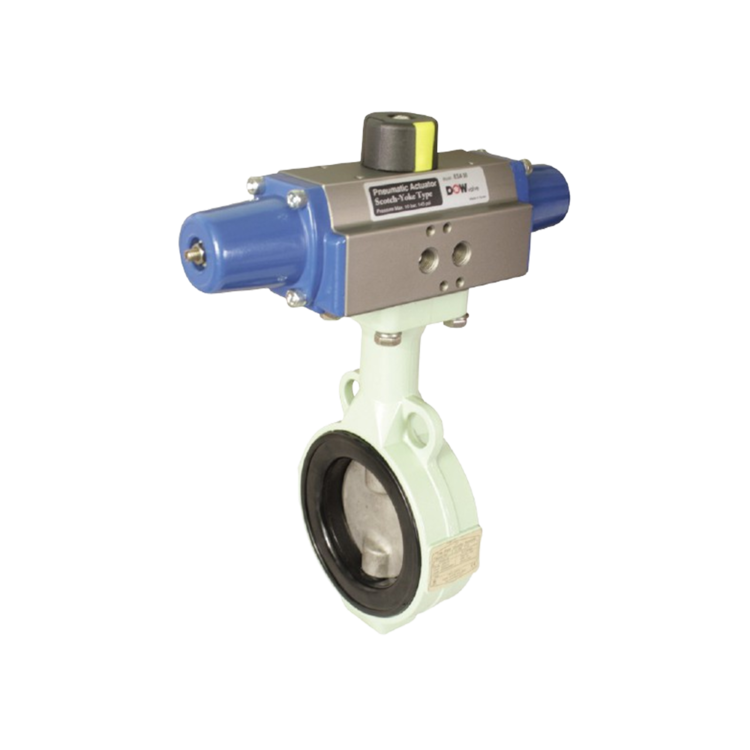

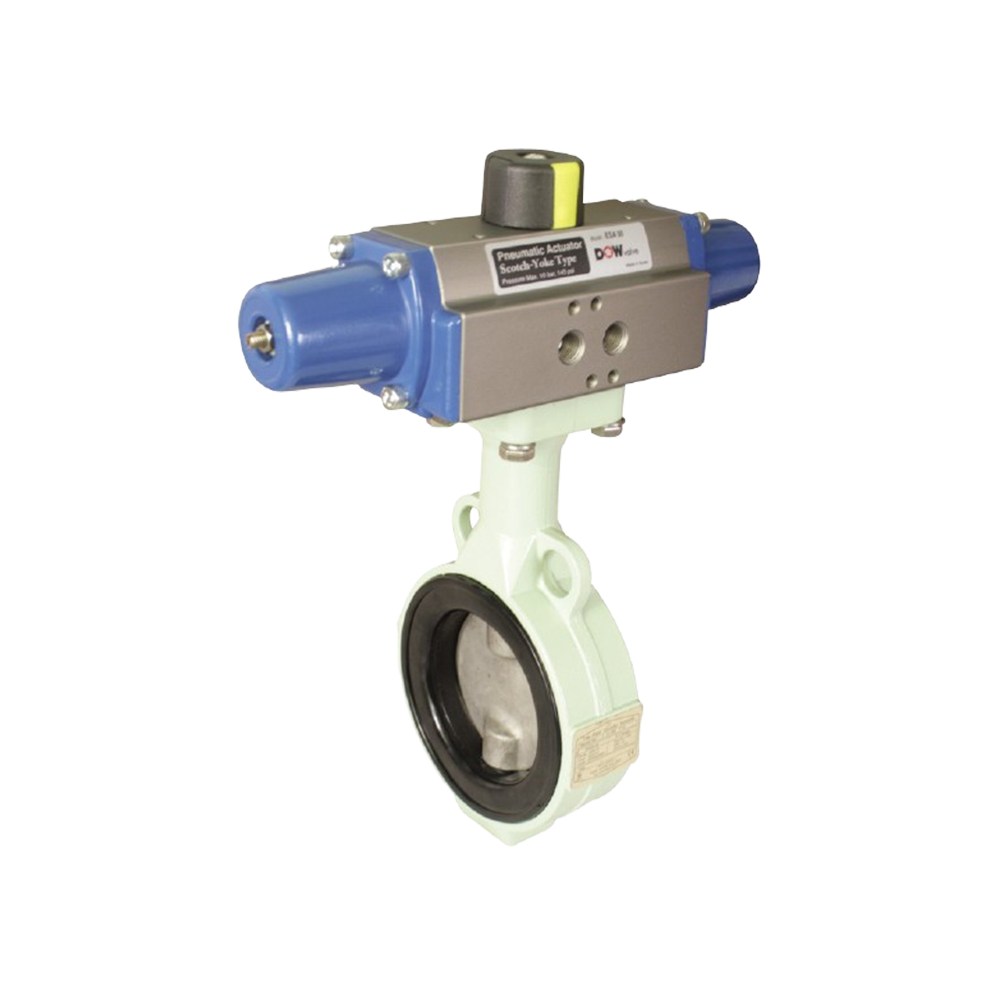

Pneumatic Butterfly Valve / Single Acting (Spring Return)
SIZE : 1-1/4″~12″
TYPE OF BODY : WAFER
END CONNECTION :
MAX. PRESSURE : 10kg/cm² (0.98MPA)
MAX. TEMPERATURE: EPDM (-20℃ TO +120℃)
FLANGE : JIS 5K / 10K , ANSI 150, PN 10
MATERIAL
-BODY : ALUMINUM ALLOY DIECAST (ADC-12)
-DISC : STAINLESS STEEL (304, 316)
-STEM : STAINLESS STEEL (304, 316)
-SEAT : EPDM, NBR
- FACE TO FACE DIMENSION : ISO 5752, API 609, MSS SP-68, DIN 3203/K1 (SHORT)
- TOP FLANGE DIMENSION : BOLT HOLE ISO 5211
OPTION
- LONG BONNET
PNEUMATIC ACTUATOR : SINGLE ACTING
○ ACCESSORIES
- SOLENOID VALVE (WEATHER / EXPLOSION PROOF)
- LIMIT SWITCH BOX (WEATHER / EXPLOSION PROOF)
- ELECTRO-PNEUMATIC POSITIONER
- FILTER REGULATOR UNIT
- SPEED CONTROLLER
- SILENCER (METAL)
- ONE TOUCH FITTING (6Ø, 8Ø)
