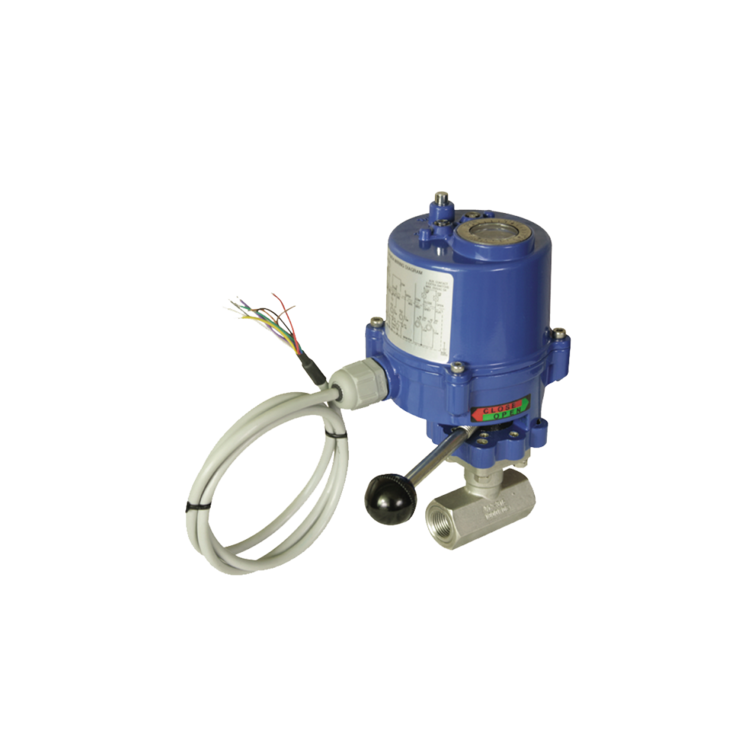

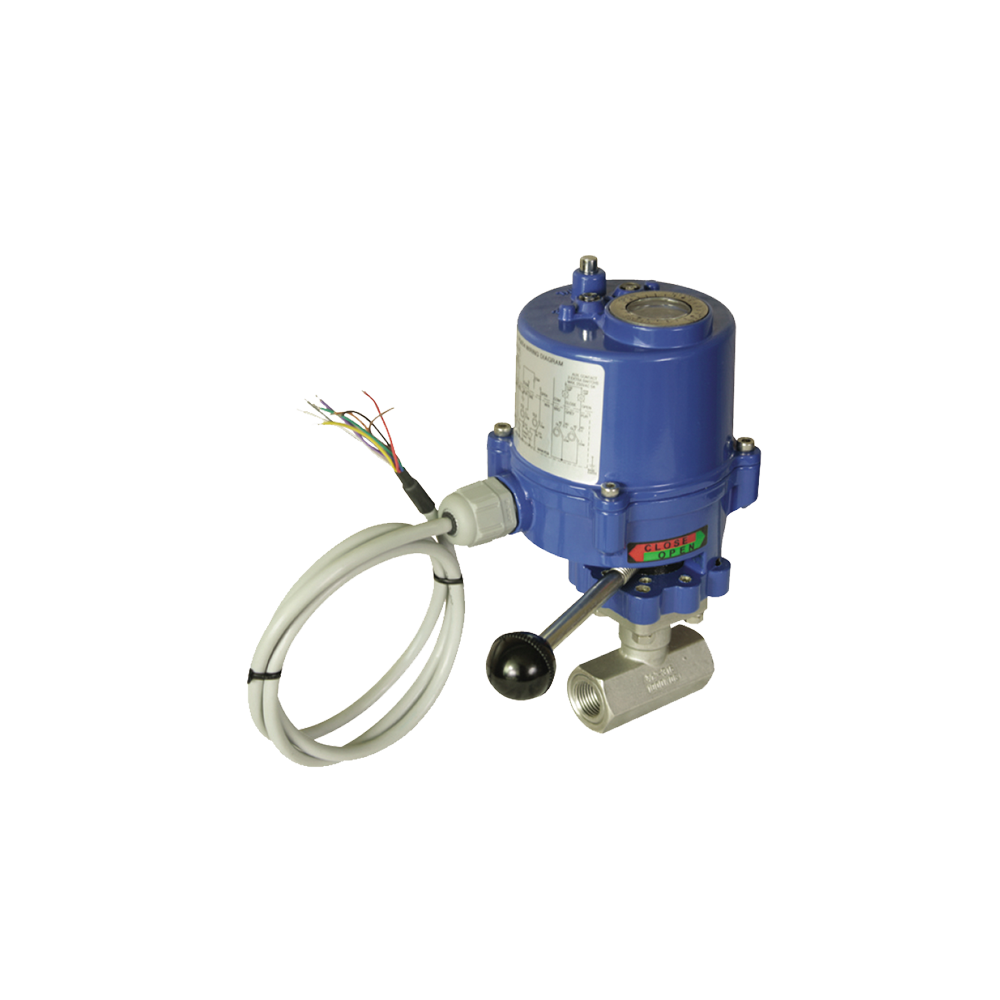

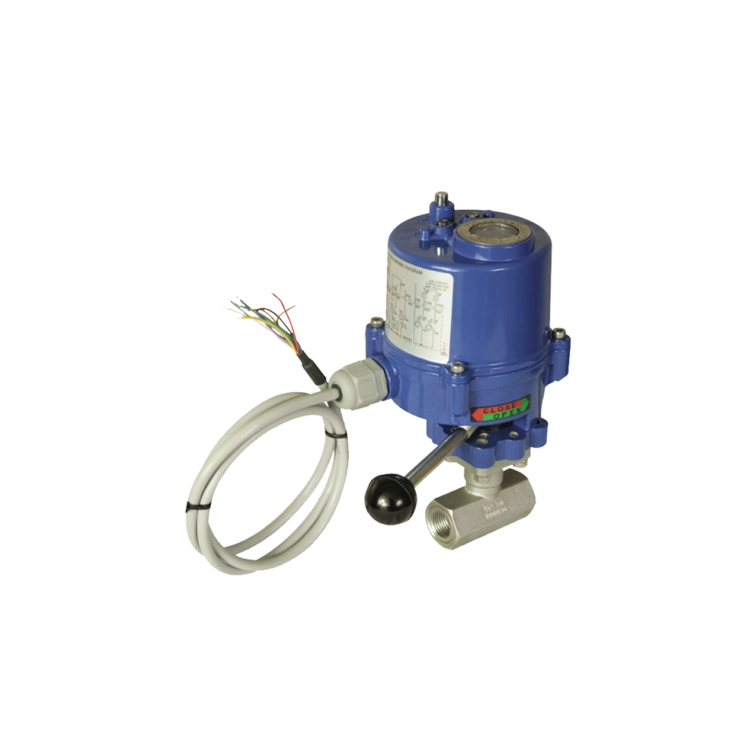

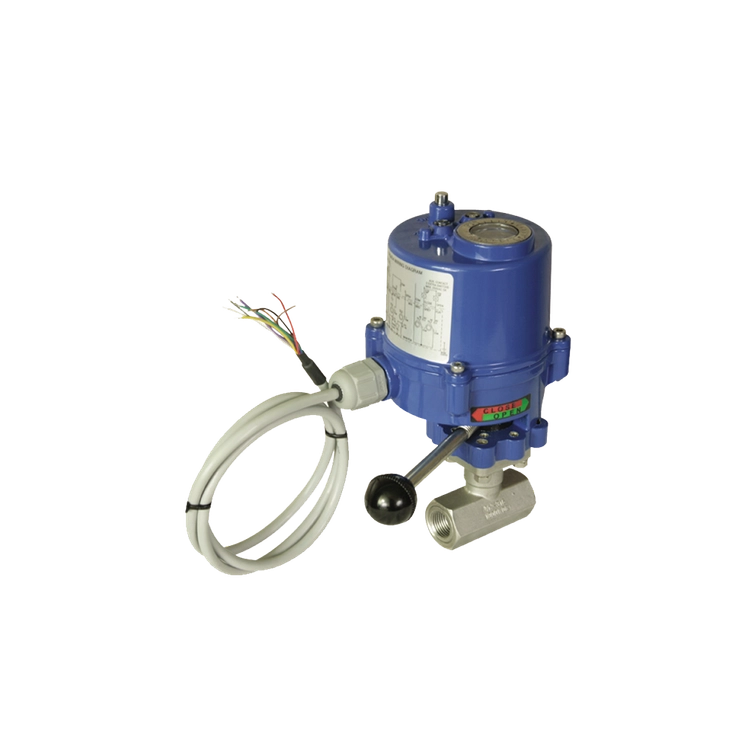

Electric 1-Piece Ball Valve, Threaded
SIZE : 3/8″~2″
END CONNECTION : SCREWED - BS21 1973 (BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
MAX. PRESSURE : 1000PSI (70kg/cm²)
MAX. TEMPERATURE: 160℃
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- ISO5211 DIRECT MOUNTING PAD
- LONG NECK MOUNTING PAD
- BLOW-OUT PROOF STEM
- SOLID BALL
- INVESTMENT CASTING BODY
ELECTRIC ACTUATOR
- Quarter turn type
- Power : AC 110/220V 1PH, AC 380/440V 3PH, DC 24V
- Enclosure : Weatherproof IP67
- Ambient temp. : -20˚C ~+60˚C
- Bottom : ISO5211 mounting base
- Top : Dome type indicator
- With manual device(spanner, wrench or handwheel
Option
- Watertight englosure (IP68 5m 120hr)
- Explosionproof enclosure (Eexd IIB T4)
- Modulating control unit (4-20mA, 0~1V, 2~10V, 0~5V, 1~5V, 0~10V DC)
- Local Control
- Local and Modulating control
- 24V DC control board (2 wire, 3 wire)
- Thermal protection
- Heater
- Thermal protection and Heater
- Potentiometer (0~1K Ω)
- Extension 120˚, 180˚, 270˚ turn
