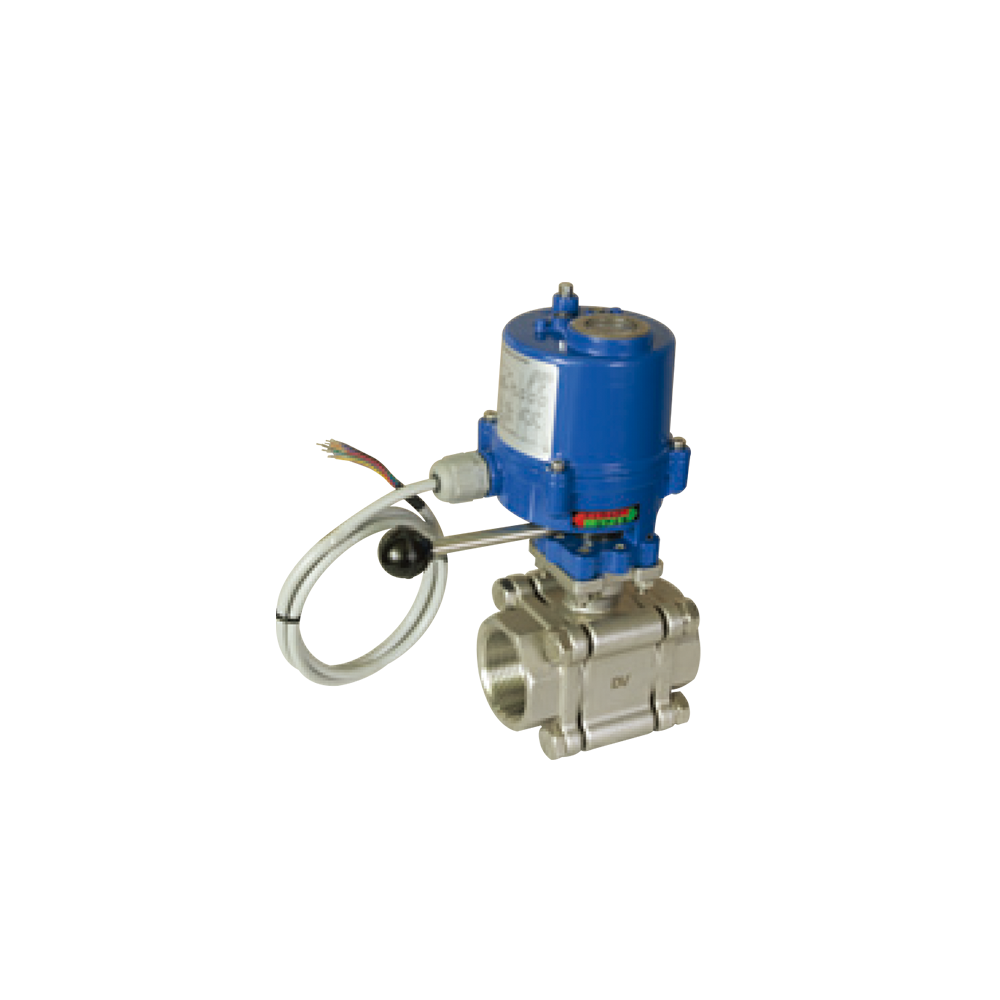

Electric 3-Piece Ball Valve
SIZE : 1/4″~2-1/2″
END CONNECTION
- SCREWED : BS21 1973 (BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
- SOCKET WELD : JIS B2316, ANSI B16.11
- BUTT WELD (37.5˚)
MAX. PRESSURE
- 2000PSI (141 kg/cm²) .... 1/4″ to 1″
- 1500PSI (106 kg/cm²) .... 1-1/4″ to 2″
- 1000PSI ( 70 kg/cm²) .... 2-1/2″ to 4″
MAX. TEMPERATURE: 160℃
PORT : STANDARD(REGULAR) FLOW
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- ISO5211 DIRECT MOUNTING PAD
- INVESTMENT CASING BODY & END CAP
- BLOW-OUT PROOF STEM
OPTION
- FULL PORT (1/4″TO 4″)
- V-PORT (30˚,45˚,60˚)
- FIRE SAFE DESIGN
- DIN STANDARD M3 LENGTH
ELECTRIC ACTUATOR
- FREE VOLTAGE : 95~245VAC/1PH, 24VDC
- ISO5211 MOUNTING BASE : F03 / 04 / 05
- PUSH BUTTON & MANUAL LEVER
- LED LAMP INDICATOR (OPEN/CLOSE)
- MECHANICAL POSITION INDICATOR
- WEATHER PROOF (IP67)
- STANDARD 4-LIMIT SWITCHES
- SPACE HEATER (0.5W)
- OPERATING TIME : 11 SEC.
OPTION
- PIU : POTENTIOMETER (1K~10KΩ)
- PCU : PROPORTIONAL CONTROL UNIT (IN/OUT, 4~20MA, 0-10VDC)
- CPT : CURRENT POSITION TRANSMITTER (OUTPUT 4~20MA
