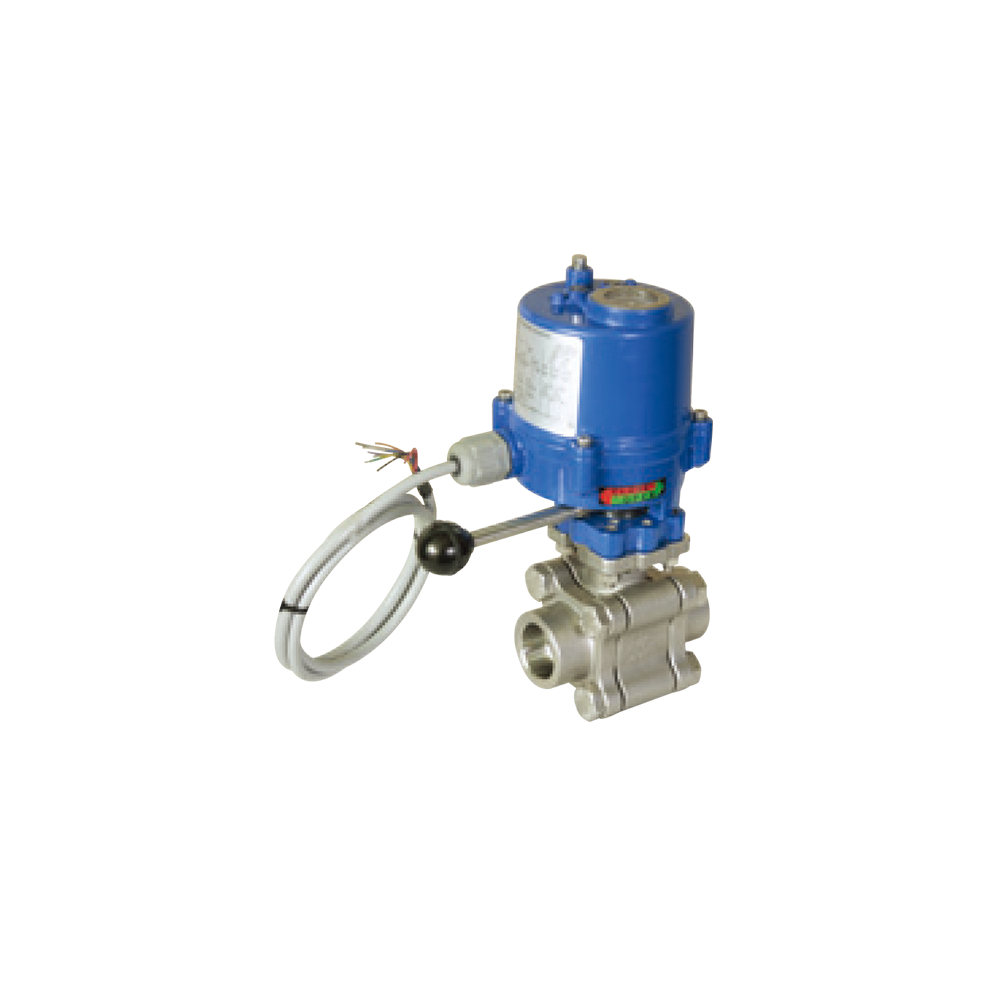

Electric 3-Piece Ball Valve
SIZE : 1/4″~3″
END CONNECTION
- SCREWED : BS21 1973 (BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
- SOCKET WELD : JIS B2316, ANSI B16.11
- BUTT WELD (37.5˚)
MAX. PRESSURE : 3000PSI (211kg/cm²) W.O.G
MAX. TEMPERATURE: 230℃
PORT : FULL FLOW
MATERIAL : ASTM A351-CF8M (1.4408) / ASTM A351-CF8 (1.4308)
- ISO5211 DIRECT MOUNTING PAD
- 8 BOLTED ENCAPSULATED BODY
- INVESTMENT CASING BODY & END CAP
- BLOW-OUT PROOF STEM
OPTION
- LOCKING DEVICE
- SPRING HANDLE (DEAD MAN HANDLE)
- V-PORT (15˚, 30˚, 60˚)
- PTFE / PFA COATING (40~70㎛)
- FIRE SAFE DESIGN (API 607)
- METAL SEATED DESIGN
- STEAM JACKET
- SPECIAL ALLOY : HASTELLOY C276 / SUPER DUPLEX / ALLOY 20 / MONEL 400
ELECTRIC ACTUATOR
- Quarter turn type
- Power : AC 110/220V 1PH, AC 380/440V 3PH, DC 24V
- Enclosure : Weatherproof IP67
- Ambient temp. : -20˚C ~+60˚C
- Bottom : ISO5211 mounting base
- Top : Dome type indicator
- With manual device(spanner, wrench or handwheel
Option
- Watertight englosure (IP68 5m 120hr)
- Explosionproof enclosure (Eexd IIB T4)
- Modulating control unit (4-20mA, 0~1V, 2~10V, 0~5V, 1~5V, 0~10V DC)
- Local Control
- Local and Modulating control
- 24V DC control board (2 wire, 3 wire)
- Thermal protection
- Heater
- Thermal protection and Heater
- Potentiometer (0~1K Ω)
- Extension 120˚, 180˚, 270˚ turn
