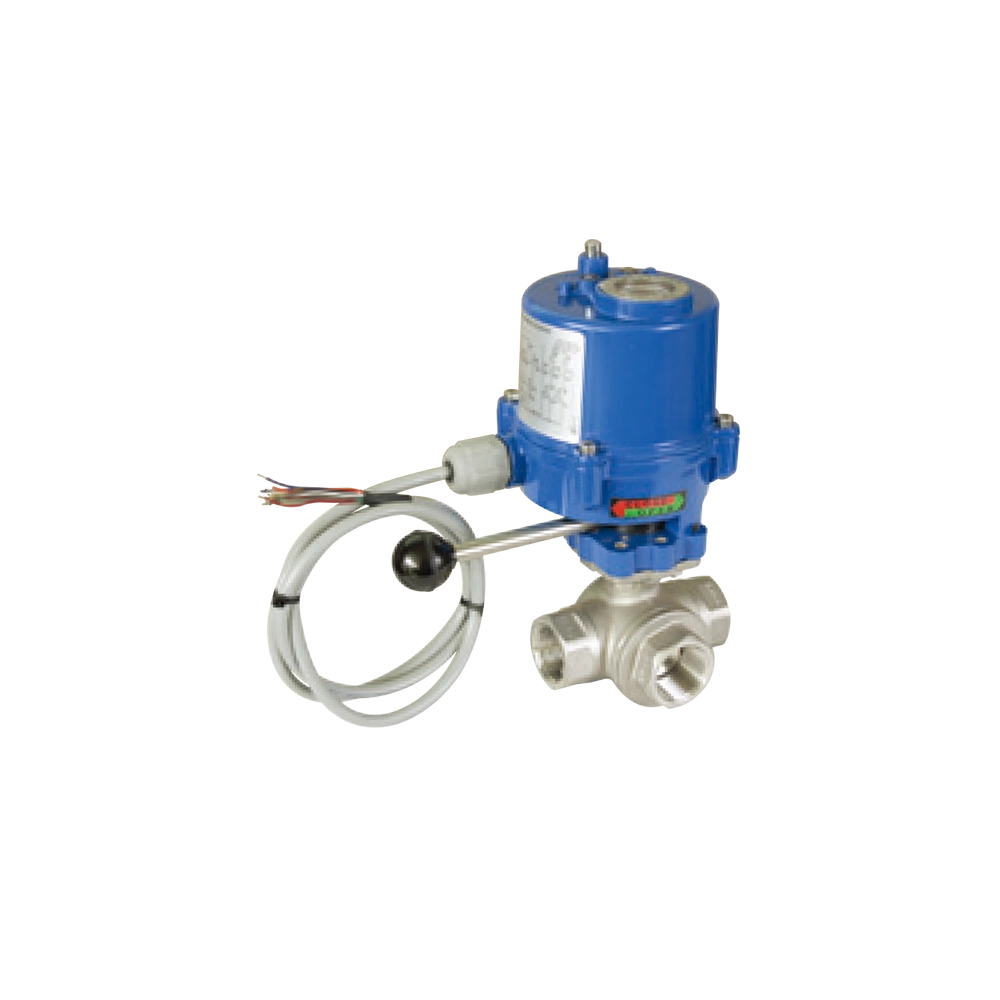

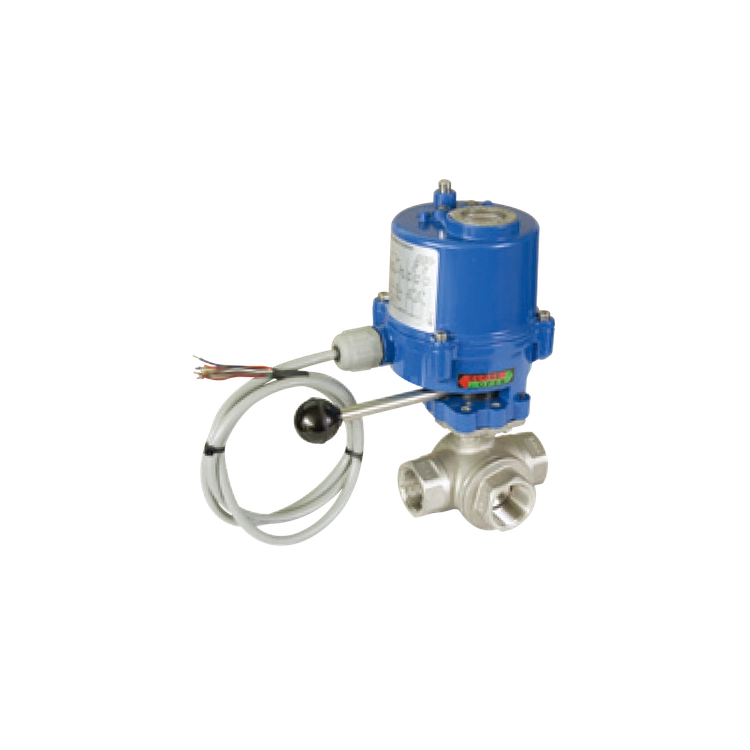

Electric 3-Way Ball Valve
SIZE : 1/4″~2″
END CONNECTION : BS21 1973 (BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
MAX. PRESSURE
- 1000PSI (70kg/cm²) W.O.G 1/4″~1-1/4″
- 800PSI (56kg/cm²) W.O.G 1-1/2″~2″
MAX. TEMPERATURE: 180℃
PORT : STANDARD FLOW
MATERIAL : ASTM A351-CF8M (1.4408)
- ISO 5211 DIRECT MOUNTING PAD
- AVAILABLE IN L OR T-POSITION
- 4 BALL SEATS DESIGN
- BLOW-OUT PROOF STEM
- INVESTMENT CASTING BODY & END CAP
OPTION
- FULL PORT
- SOCKET WELD ENDS (JIS B2316)
- CARBON FILLED TEFLON SEAT
- PTFE / PFA COATING (40-70㎛)
- 180˚OPERATION STOP PLATE
ELECTRIC ACTUATOR
- Quarter turn type
- Power : AC 110/220V 1PH, AC 380/440V 3PH, DC 24V
- Enclosure : Weatherproof IP67
- Ambient temp. : -20˚C ~+60˚C
- Bottom : ISO5211 mounting base
- Top : Dome type indicator
- With manual device(spanner, wrench or handwheel
Option
- Watertight englosure (IP68 5m 120hr)
- Explosionproof enclosure (Eexd IIB T4)
- Modulating control unit (4-20mA, 0~1V, 2~10V, 0~5V, 1~5V, 0~10V DC)
- Local Control
- Local and Modulating control
- 24V DC control board (2 wire, 3 wire)
- Thermal protection
- Heater
- Thermal protection and Heater
- Potentiometer (0~1K Ω)
- Extension 120˚, 180˚, 270˚ turn
