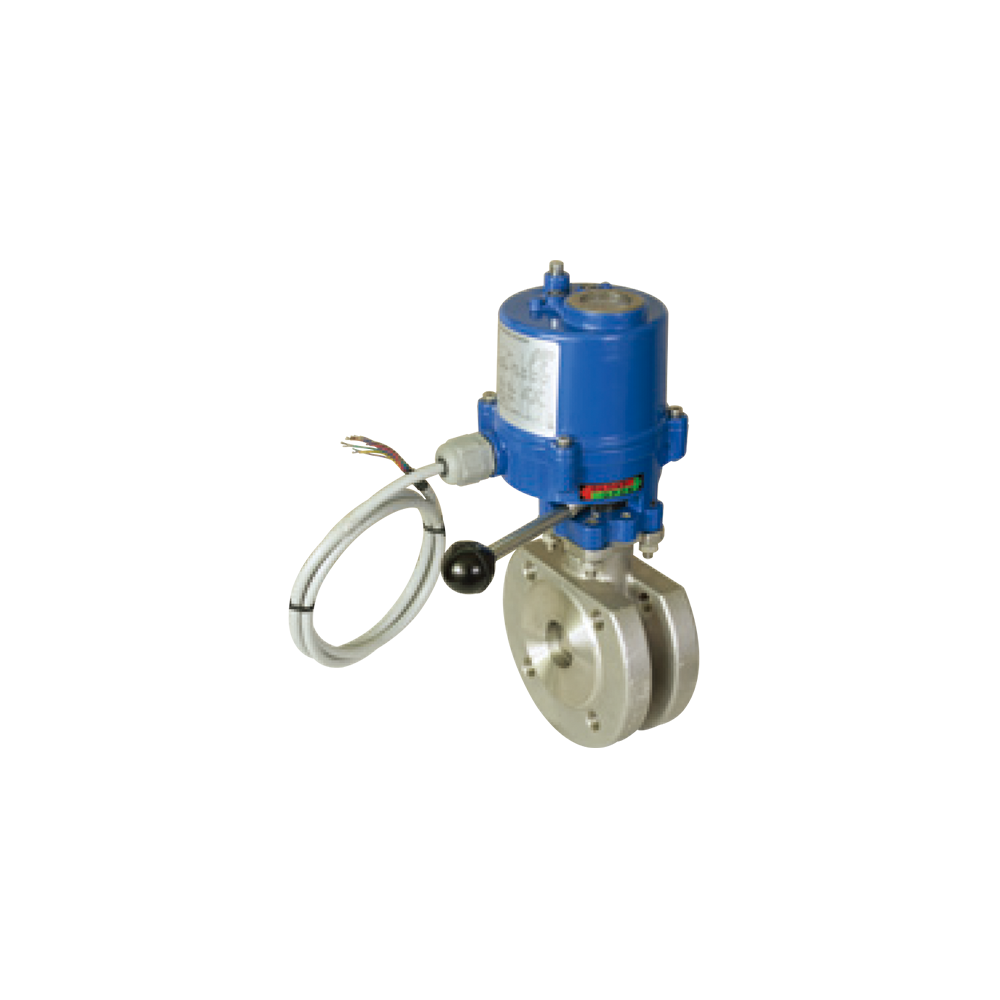

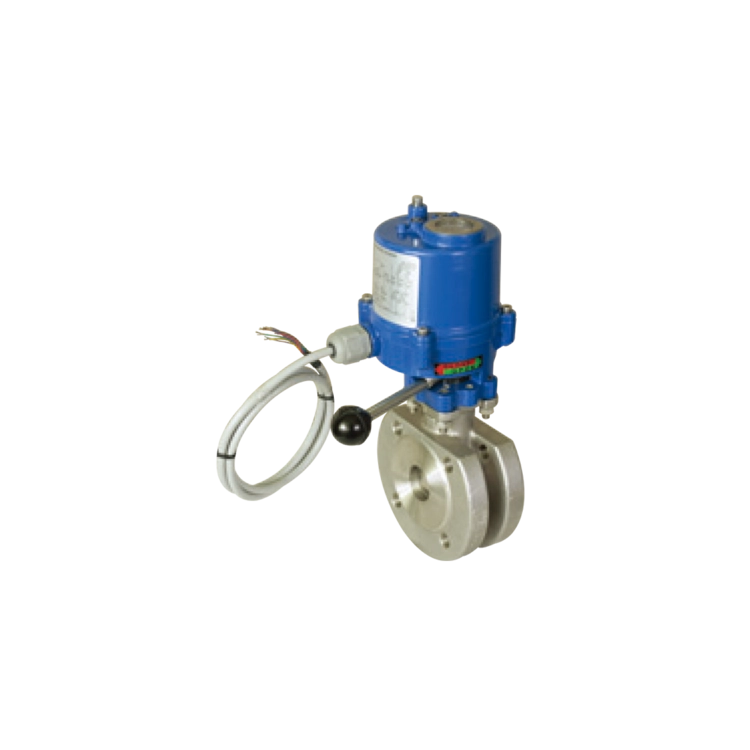

Electric 1-Piece Wafer Flanged Ball Valve
SIZE : 1/4″~4″
END CONNECTION
- SCREWED : BS21 1973(BSPT), ANSI B2.1 (NPT), DIN 259/2999, ISO 228
- SOCKET WELD : JIS B2316, ANSI B16.11
- BUTT WELD (37.5˚)
MAX. PRESSURE
- PN 40 (1/2″~1-1/2″)
- PN 16 (2″~4″)
MAX. TEMPERATURE: 160℃
PORT : FULL BORE
FLANGE : PN 16
MATERIAL : DIN 1.4408 (A351-CF8M)
- PRESSURE TESTING : EN12266
- ISO5211 DIRECT MOUNTING PAD
- EXTRA HIGH CYCLE LIFE (LOADED DOUBLE SEALING)
- COMPACT SPACE SAVING DESIGN
- ANTI-STATIC DEVICE
- BLOW OUT PROOF STEM
- SOLID BALL
- INVESTMENT CASTING BODY
ELECTRIC ACTUATOR
- Quarter turn type
- Power : AC 110/220V 1PH, AC 380/440V 3PH, DC 24V
- Enclosure : Weatherproof IP67
- Ambient temp. : -20˚C ~+60˚C
- Bottom : ISO5211 mounting base
- Top : Dome type indicator
- With manual device(spanner, wrench or handwheel
Option
- Watertight englosure (IP68 5m 120hr)
- Explosionproof enclosure (Eexd IIB T4)
- Modulating control unit (4-20mA, 0~1V, 2~10V, 0~5V, 1~5V, 0~10V DC)
- Local Control
- Local and Modulating control
- 24V DC control board (2 wire, 3 wire)
- Thermal protection
- Heater
- Thermal protection and Heater
- Potentiometer (0~1K Ω)
- Extension 120˚, 180˚, 270˚ turn
