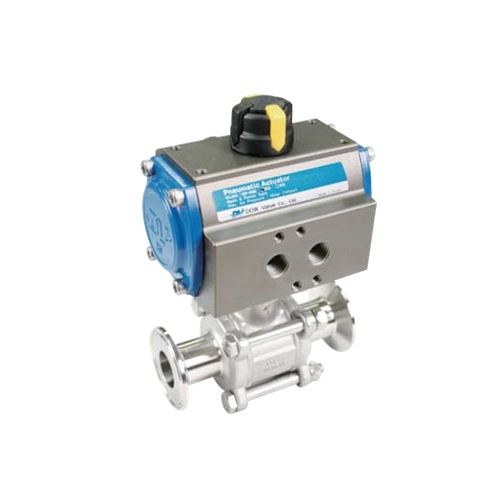

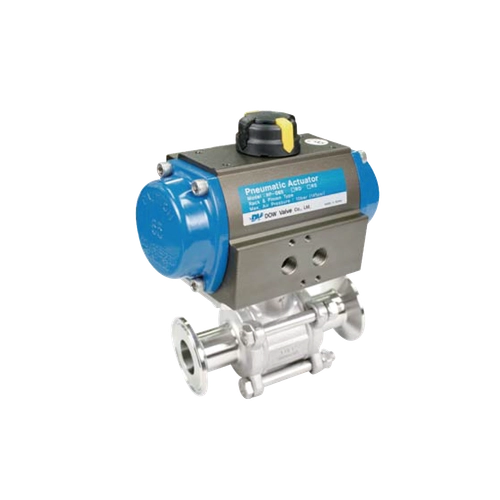

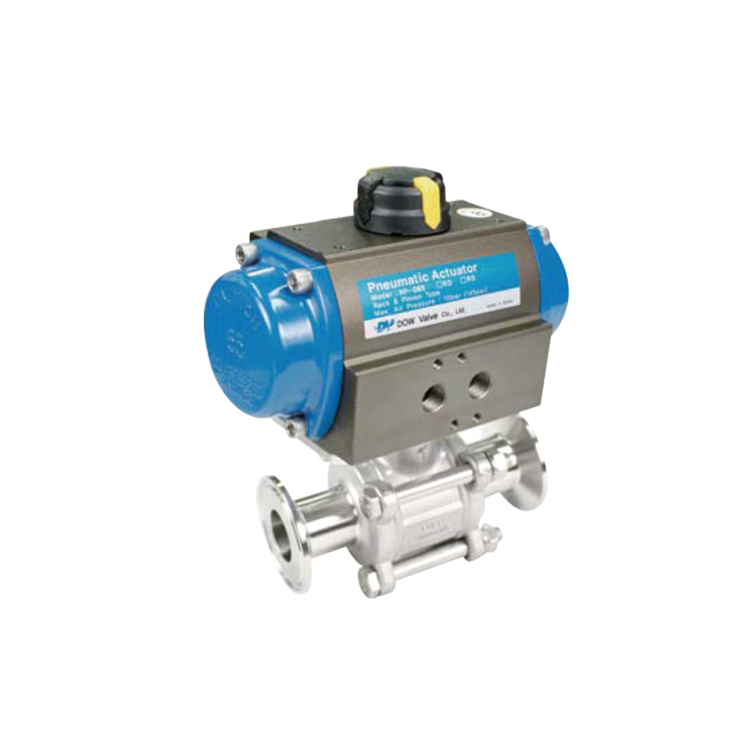

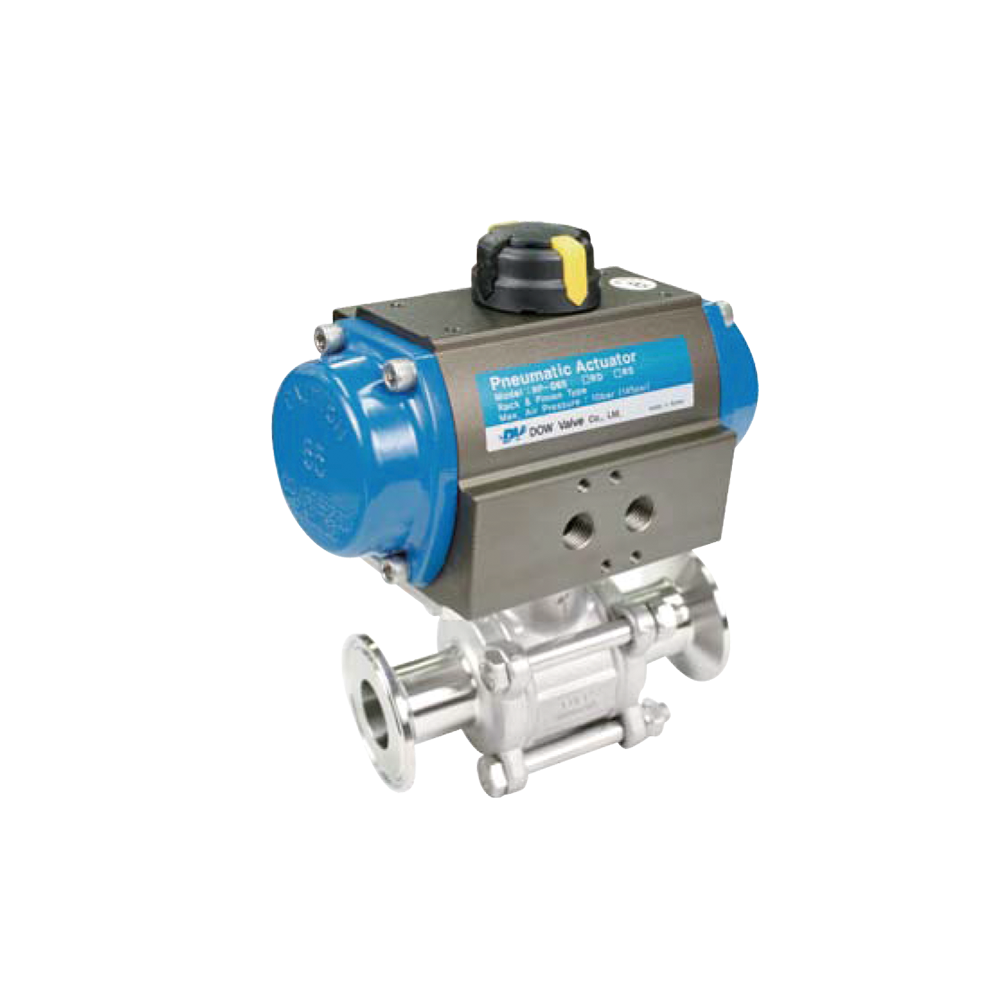

Pneumatic Sanitary 2-Way Ball Valve / Single Acting (Spring Return)
SIZE : 1/2S~4S
END CONNECTION : Clamp Ends
MATERIAL
- BODY : SS316(CF8M), SS316L(CF3M)
- SEAT : TFM-1600 (-40 to +180˚C)
- Inside Polish ≤ Ra 0.4, Grit 240g(Ra 14~18μ-in)
- ISO5211 Direct Mounting Pad
- With Locking Handle
OPTION
- Butt Weld Ends
- Cavity Filled Seat
PNEUMATIC ACTUATOR : Rack & Pinion
Rack & Pinion
○ ACCESSORIES
- Solenoid Valve (Weather / Explosion Proof)
- Limit Switch Box (Weather / Explosion Proof)
- Electro-Pneumatic Positioner
- Filter Regulator Unit
- Speed Controller
- Silencer (Metal)
- One Touch Fitting (6Ø, 8Ø)
