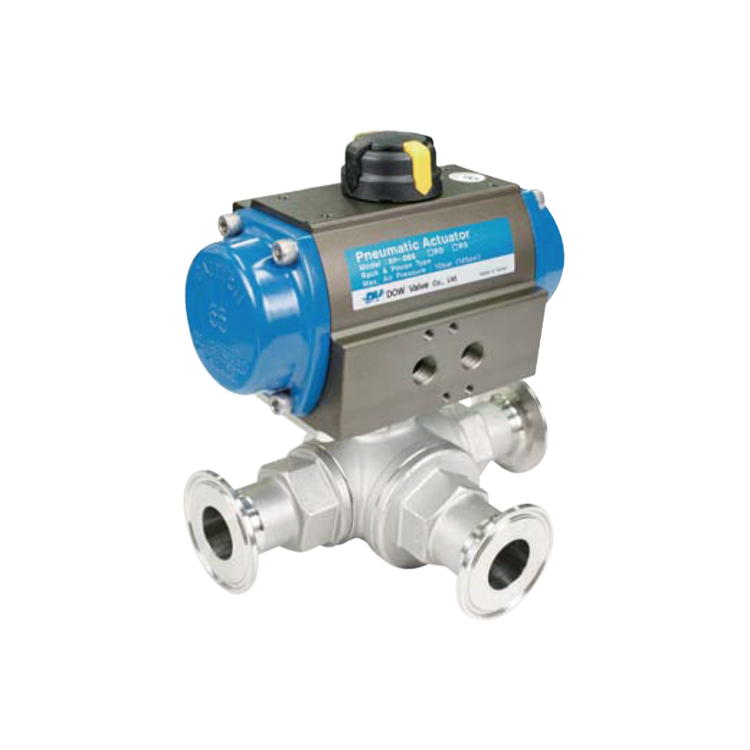

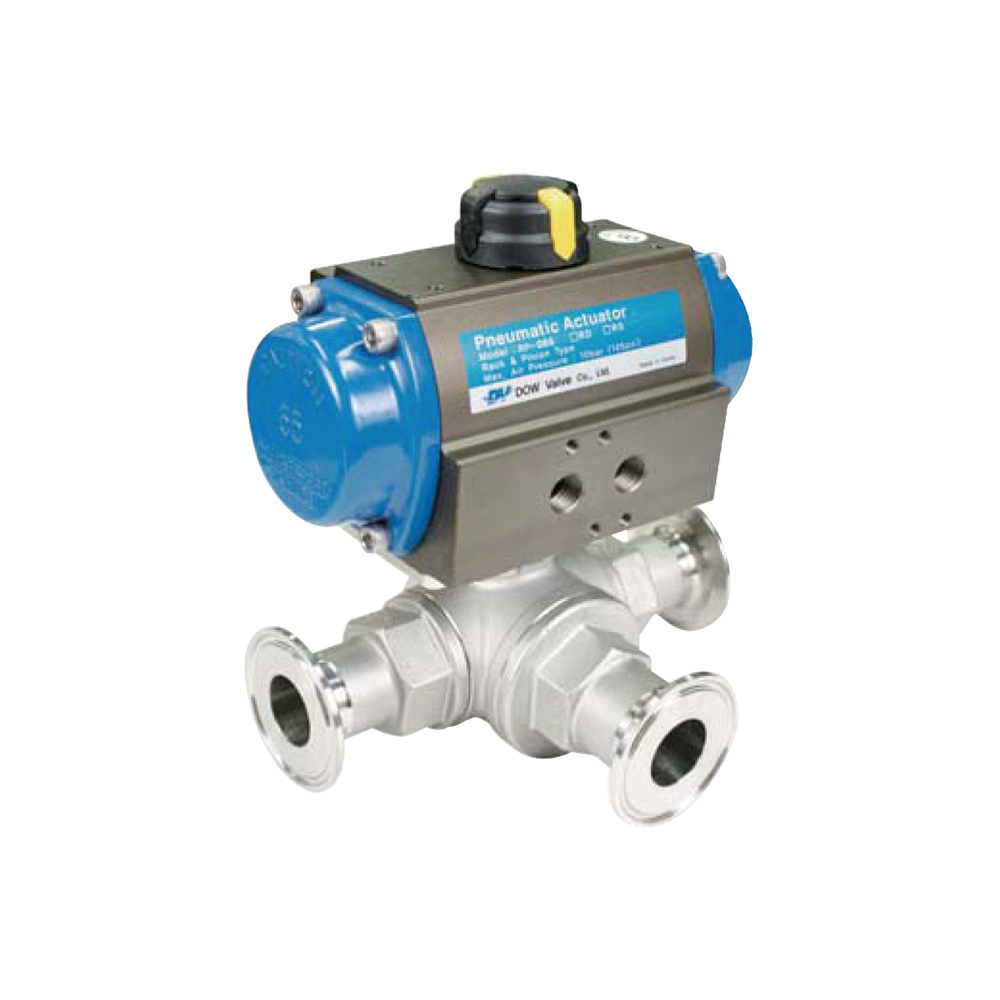

Pneumatic Sanitary 3-Way Ball Valve / Single Acting (Spring Return)
SIZE : 1/2S~2S
END CONNECTION : Clamp Ends
MATERIAL
- BODY : SS316(CF8M), SS316L(CF3M)
- SEAT : TFM-1600 (-40 to +180˚C) : 3M
- Lor T-Position
- ISO5211 Direct Mounting Pad
- Inside polish standard grit (Ra 18~23μ-in)
- With Locking Handle
OPTION
- Cavity Filled Seat
- 180˚ Operated Stop Plate
- PTFE/PFA Coating(40~70μm)
PNEUMATIC ACTUATOR : Single Acting
○ Rack & Pinion
○ ACCESSORIES
- Solenoid Valve (Weather / Explosion Proof)
- Limit Switch Box (Weather / Explosion Proof)
- Electro-Pneumatic Positioner
- Filter Regulator Unit
- Speed Controller
- Silencer (Metal)
- One Touch Fitting (6Ø, 8Ø)
