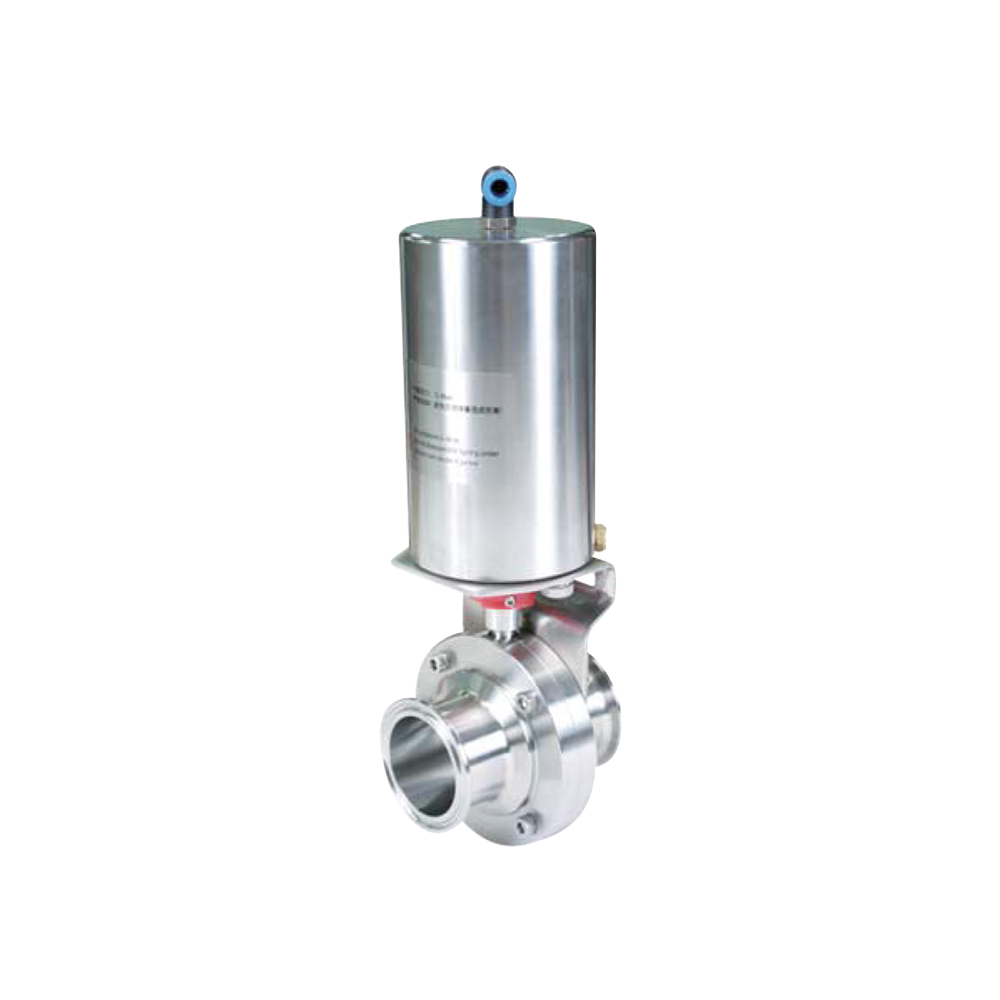

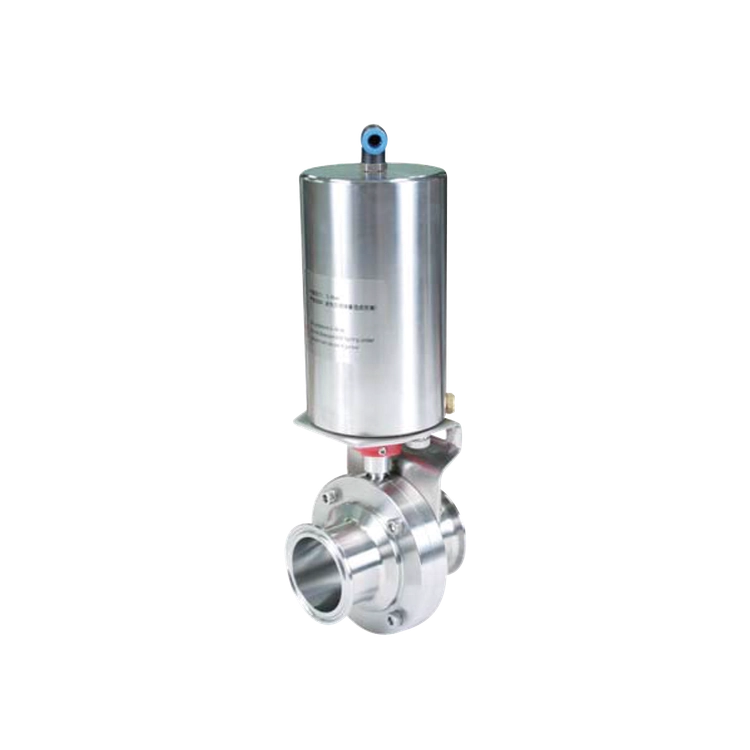

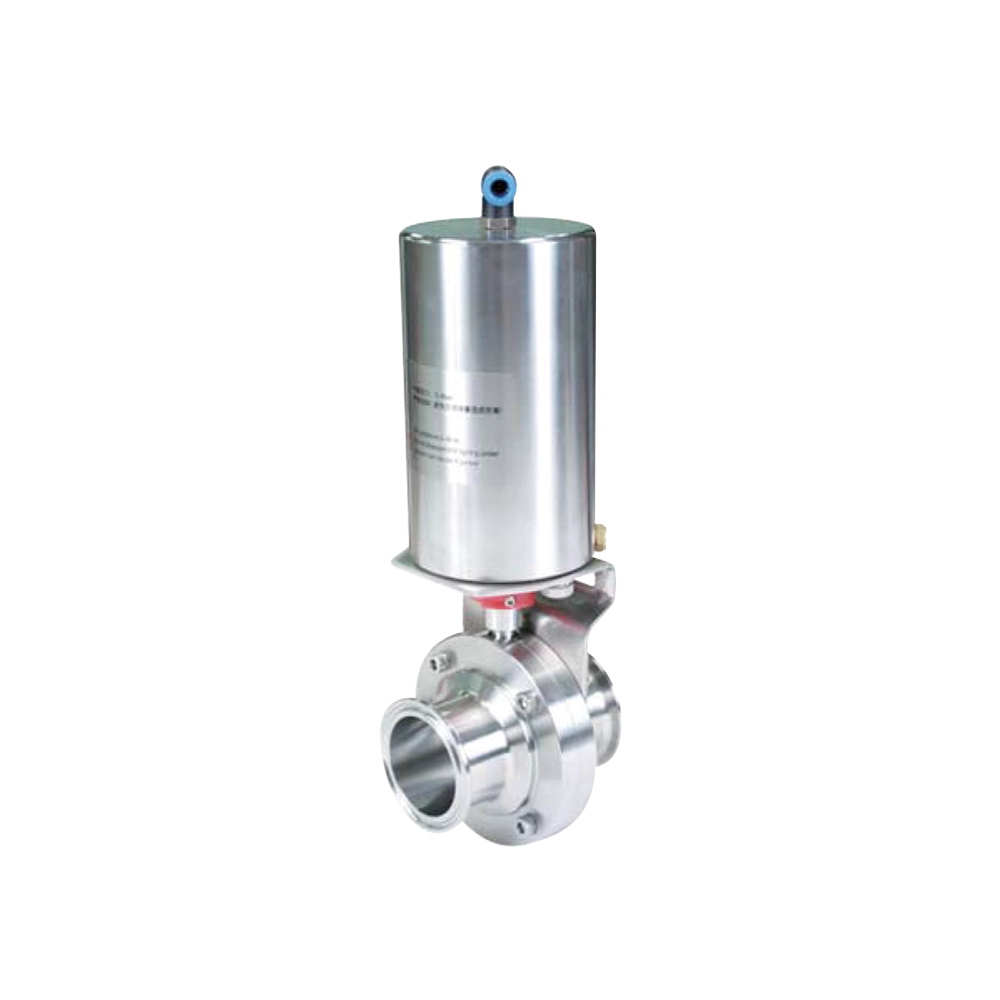

Pneumatic Sanitary Butterfly Valve / Single Acting (Spring Return)
SIZE : 1S~4S
END CONNECTION : Clamp Ends
MATERIAL
- BODY & DISC : SS304 & 316L
- SEAT : Silicone
- 12 Position in the fully open to fully closed
- With Gripper Handle
OPTION
- Male & Butt Weld Ends
- Stainless Steel Lever
- Special Silicone Seat (Max. 250°C)
PNEUMATIC ACTUATOR : Single Acting (Spring Return)
○ Rack & Pinion
○ Vertical Type
○ ACCESSORIES
- Solenoid Valve (Weather / Explosion Proof)
- Limit Switch Box (Weather / Explosion Proof)
- Electro-Pneumatic Positioner
- Filter Regulator Unit
- Speed Controller
- Silencer (Metal)
- One Touch Fitting (6Ø, 8Ø)
