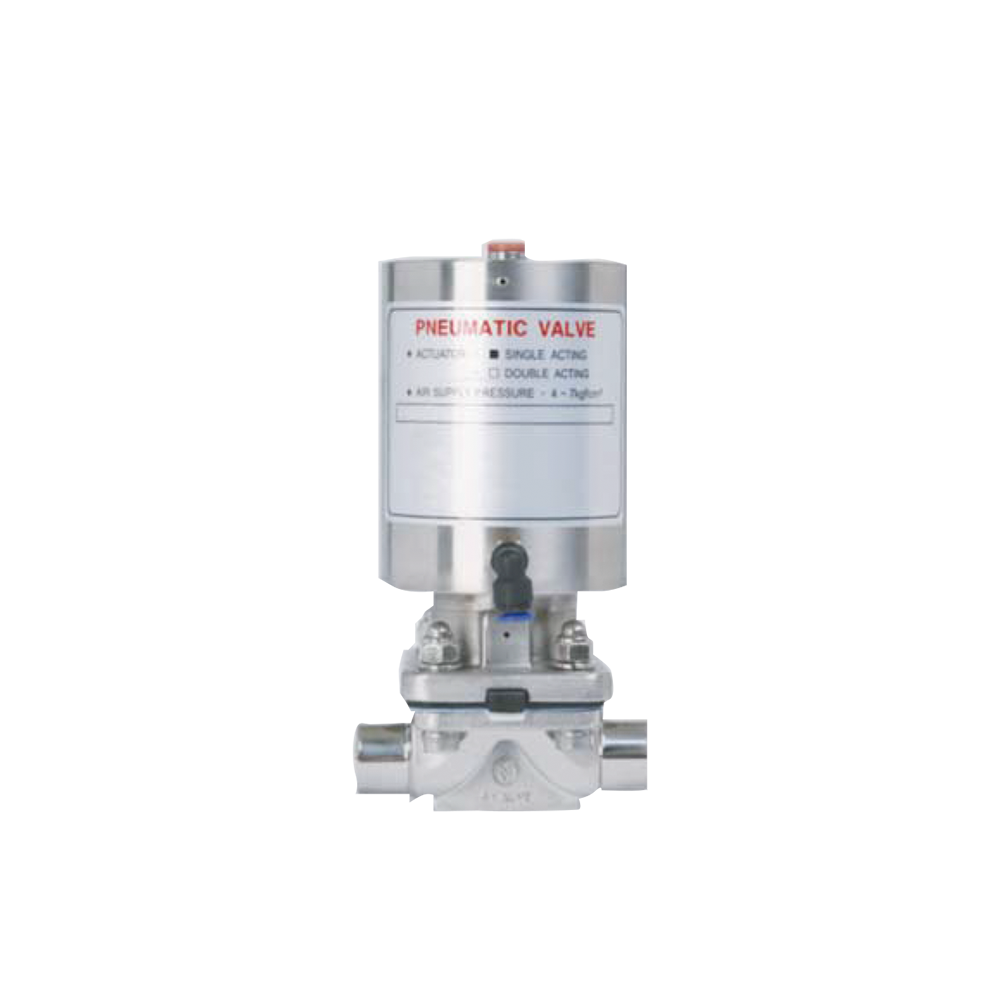

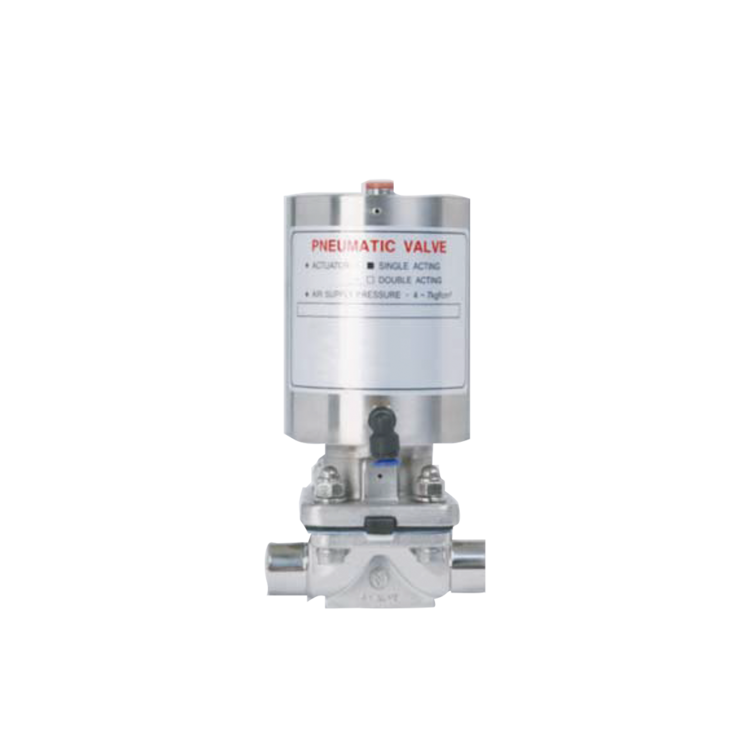

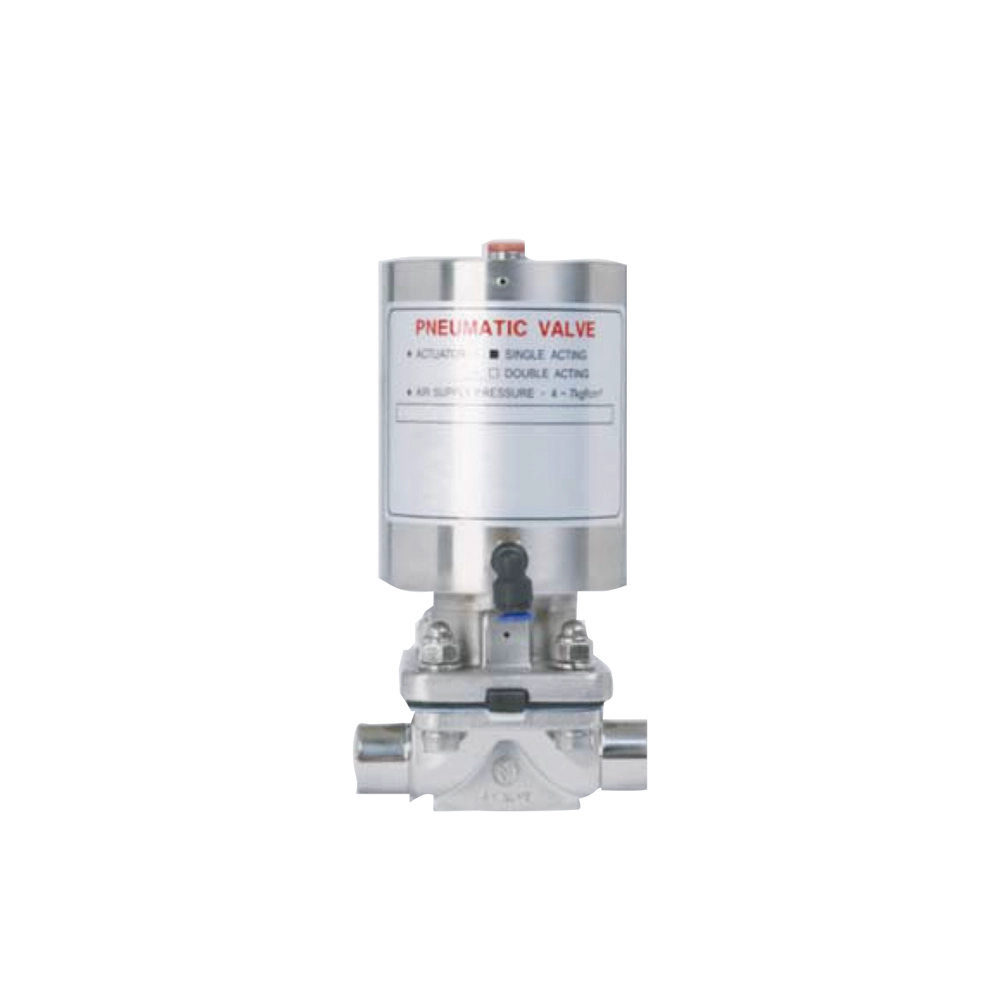

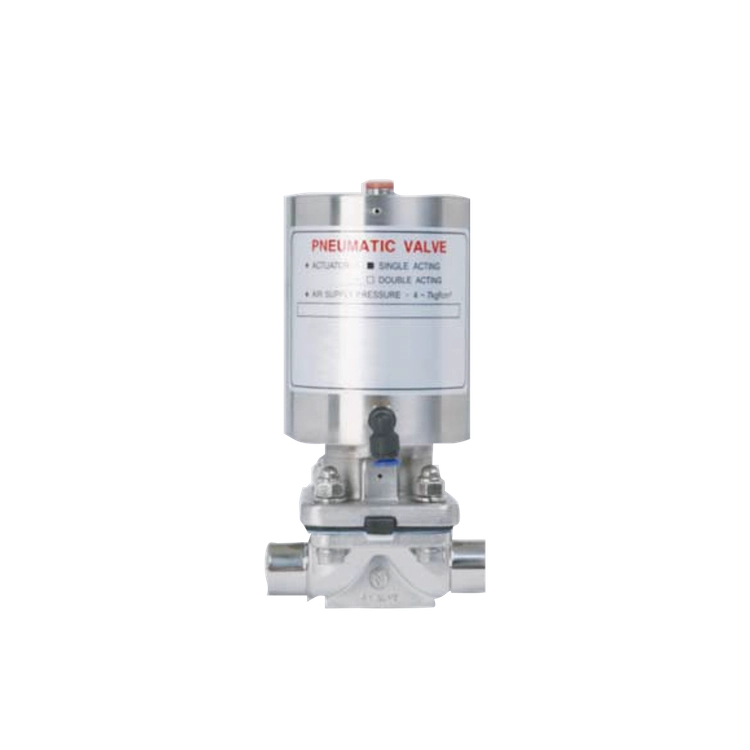

Pneumatic Diaphragm Valve
SIZE : 1/2S~2S
END CONNECTION : Butt Weld
MATERIAL
- BODY : Forging STS316L
- BONNET : Casting STS304
- HANDWHEEL : M.C Nylon, STS304
DIAPHRAGM
- TFM : FDA, Single
- TFM : FDA, Two piece
- CFR21 Section 177.1550
- Surface Treatment Internal Ra ≤ 0.4μm
- Other : Electrolytic Polishing
- Working Temperature -5˚C~150˚C
- Working Pressure 6kg/cm2
PNEUMATIC ACTUATOR : Double Acting or Single Acting
○ Rack & Pinion
○ ACCESSORIES
- Solenoid Valve (Weather / Explosion Proof)
- Limit Switch Box (Weather / Explosion Proof)
- Electro-Pneumatic Positioner
- Filter Regulator Unit
- Speed Controller
- Silencer (Metal)
- One Touch Fitting (6Ø, 8Ø)
