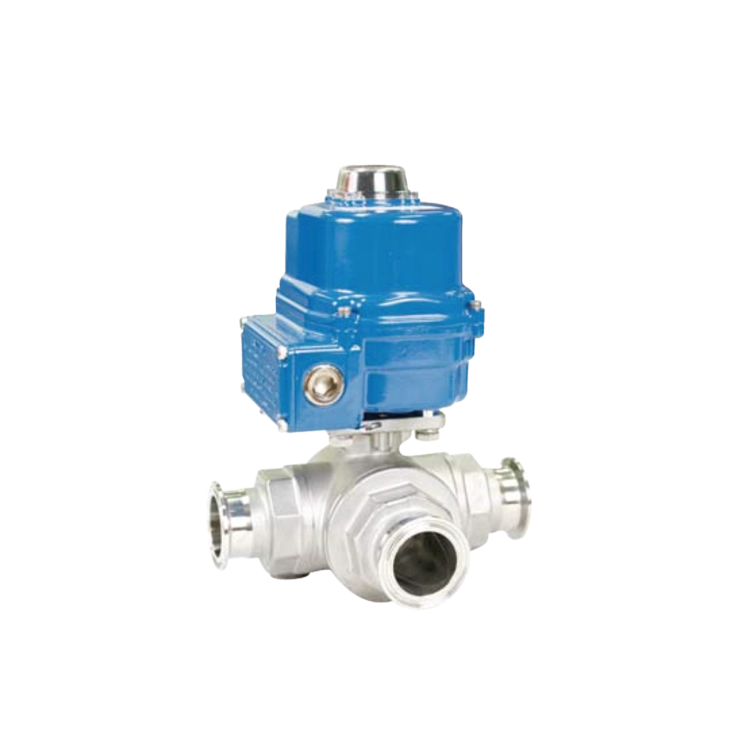

Electric Sanitary 3-Way Ball Valve
SIZE : 1/2S~2S
END CONNECTION : Clamp Ends, Bolted End Caps
MATERIAL
- BODY : SS316(CF8M), SS316L(CF3M)
- SEAT : TFM-1600 (-40 to +180˚C) : 3M
- Lor T-Position
- ISO5211 Direct Mounting Pad
- Inside polish standard grit (Ra 18~23μ-in)
- With Locking Handle
OPTION
- Cavity Filled Seat
- 180˚ Operated Stop Plate
- PTFE/PFA Coating(40~70μm)
- ASME/BPE Standard for SS316L
- Low Ferrite (<3%)
- Low Sulphur(0.005% to 0.017%)
ELECTRIC ACTUATOR
- Quarter turn type
- Power : AC 110/220V 1PH, AC 380/440V 3PH, DC 24V
- Enclosure : Weatherproof IP67
- Ambient temp. : -20˚C ~+60˚C
- Bottom : ISO5211 mounting base
- Top : Dome type indicator
- With manual device(spanner, wrench or handwheel
Option
- Watertight englosure (IP68 5m 120hr)
- Explosionproof enclosure (Eexd IIB T4)
- Modulating control unit (4-20mA, 0~1V, 2~10V, 0~5V, 1~5V, 0~10V DC)
- Local Control
- Local and Modulating control
- 24V DC control board (2 wire, 3 wire)
- Thermal protection
- Heater
- Thermal protection and Heater
- Potentiometer (0~1K Ω)
- Extension 120˚, 180˚, 270˚ turn
