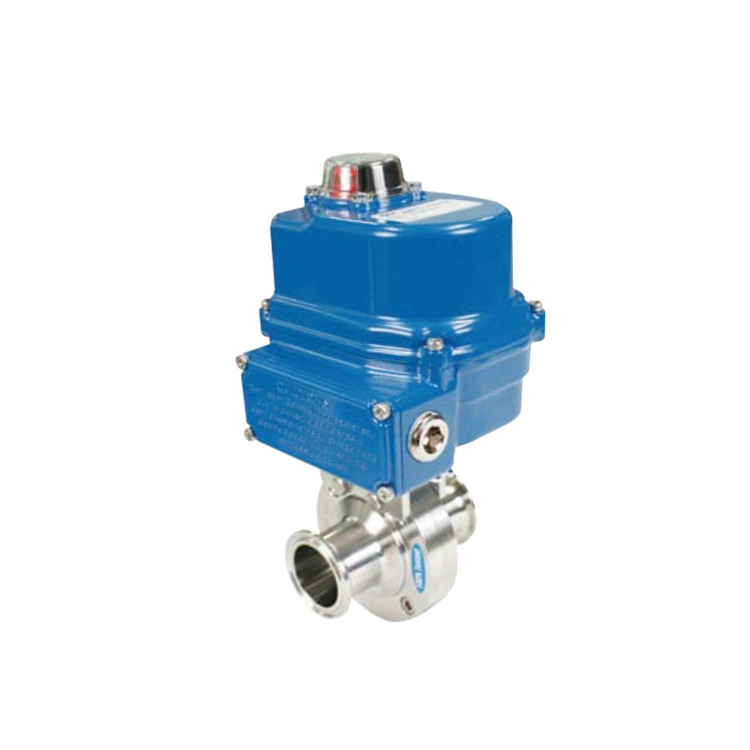

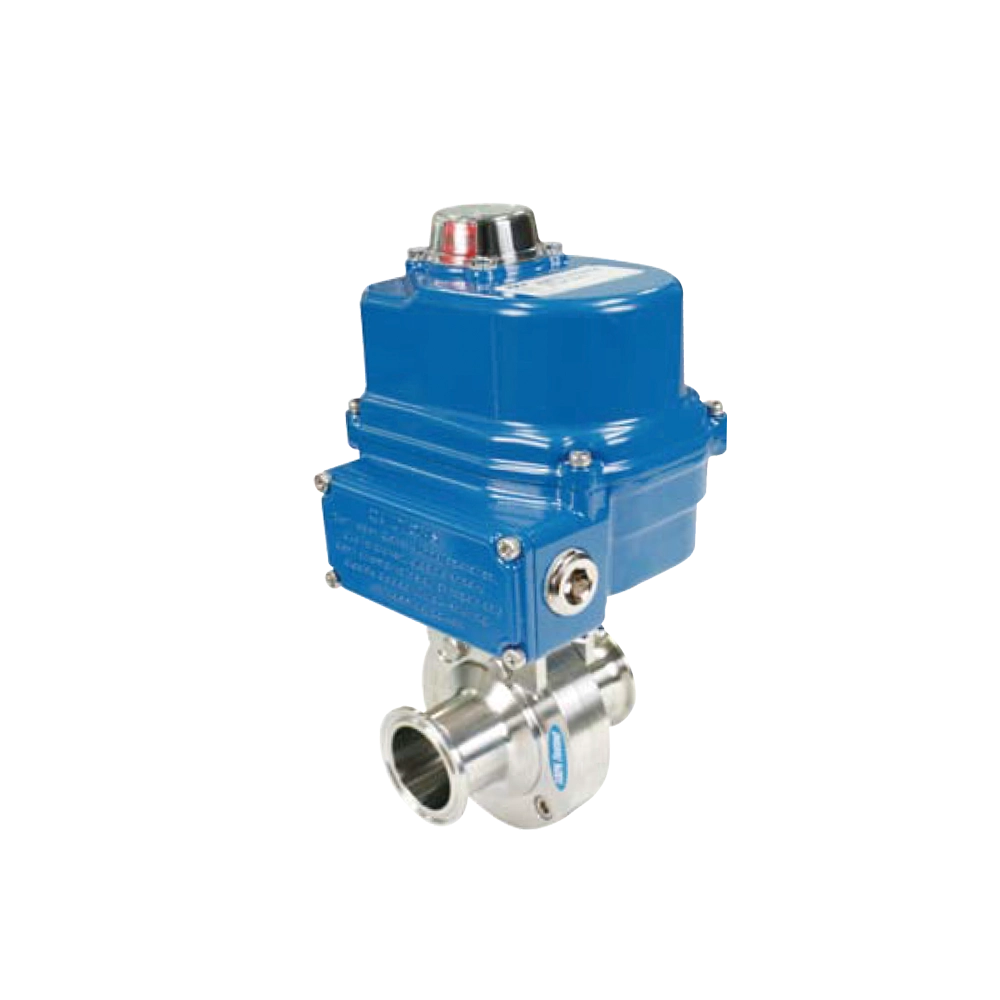

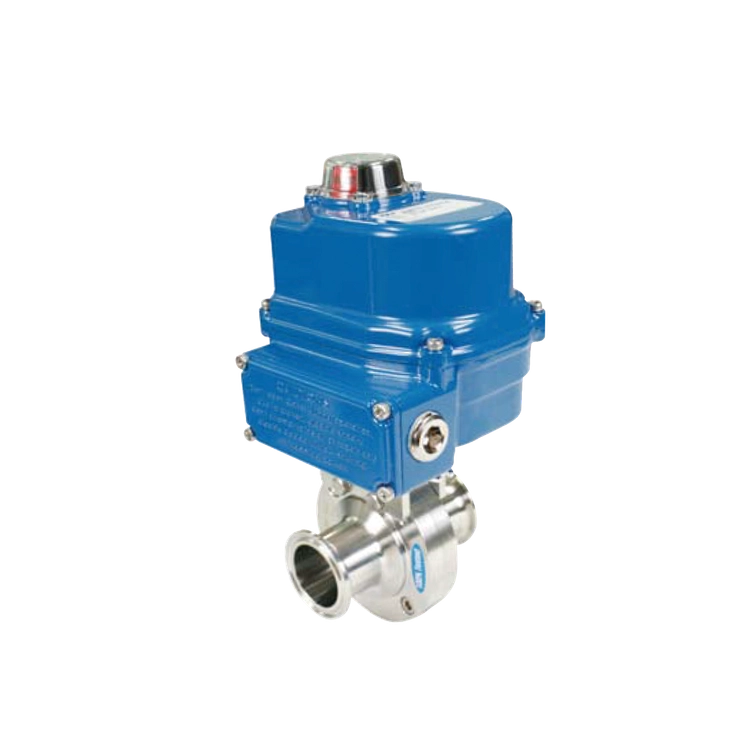

Electric Sanitary 2-Way Ball Valve
SIZE : 1/2S~4S
END CONNECTION : Clamp Ends
MATERIAL
- BODY & DISC : SS304 & 316L
- SEAT : Silicone
- 12 Position in the fully open to fully closed
- With Gripper Handle
OPTION
- Male & Butt Weld Ends
- Stainless Steel Lever
- Special Silicone Seat (Max. 250°C)
ELECTRIC ACTUATOR
- Quarter turn type
- Power : AC 110/220V 1PH, AC 380/440V 3PH, DC 24V
- Enclosure : Weatherproof IP67
- Ambient temp. : -20˚C ~+60˚C
- Bottom : ISO5211 mounting base
- Top : Dome type indicator
- With manual device(spanner, wrench or handwheel
Option
- Watertight englosure (IP68 5m 120hr)
- Explosionproof enclosure (Eexd IIB T4)
- Modulating control unit (4-20mA, 0~1V, 2~10V, 0~5V, 1~5V, 0~10V DC)
- Local Control
- Local and Modulating control
- 24V DC control board (2 wire, 3 wire)
- Thermal protection
- Heater
- Thermal protection and Heater
- Potentiometer (0~1K Ω)
- Extension 120˚, 180˚, 270˚ turn
